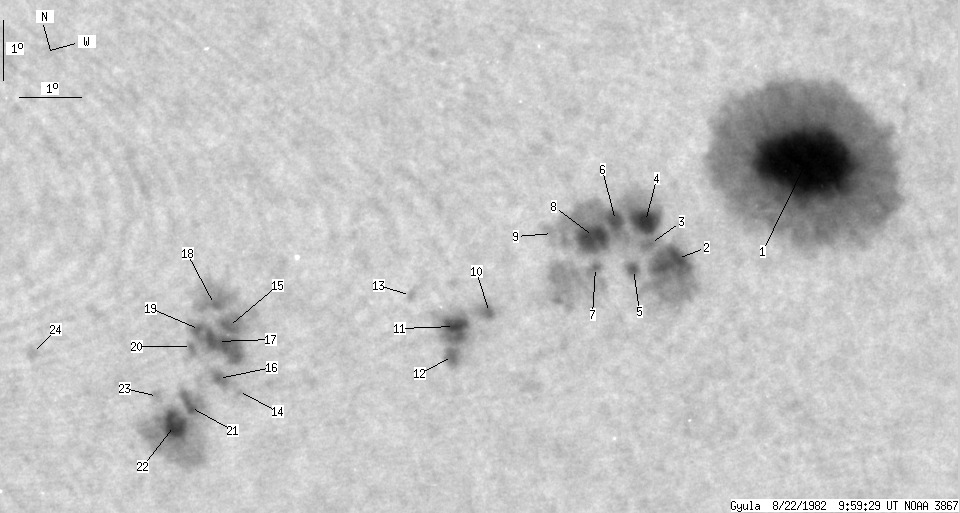

Gyula 1982-08-22 09:59:54 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 140 | 1040 | 77 | 579 | -12.08 | 155.87 | -18.93 | 135.80 | 0.4530 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 1982-08-22 09:59:54 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 103 | 606 | 56 | 330 | -11.70 | 158.71 | -16.09 | 139.27 | 0.4176 | |
| 1 | 172 | 1 | 96 | -12.70 | 156.10 | -18.70 | 136.54 | 0.4566 | |
| 0 | -2 | 0 | -2 | -12.42 | 155.78 | -19.03 | 135.60 | 0.4570 | |
| 6 | -2 | 3 | -2 | -11.99 | 155.83 | -18.97 | 135.00 | 0.4516 | |
| 0 | 5 | 0 | 3 | -12.77 | 155.35 | -19.45 | 135.52 | 0.4654 | |
| 4 | -2 | 2 | -2 | -11.89 | 155.36 | -19.44 | 134.14 | 0.4558 | |
| 0 | 59 | 0 | 33 | -12.59 | 154.76 | -20.04 | 134.38 | 0.4699 | |
| 6 | -2 | 3 | -2 | -12.08 | 154.93 | -19.87 | 133.83 | 0.4626 | |
| 0 | 5 | 0 | 3 | -11.89 | 154.28 | -20.53 | 132.58 | 0.4679 | |
| 0 | 5 | 0 | 3 | -12.93 | 152.77 | -22.03 | 132.19 | 0.4954 | |
| 2 | 31 | 1 | 18 | -13.01 | 152.15 | -22.65 | 131.52 | 0.5032 | |
| 2 | -11 | 1 | -11 | -13.49 | 151.91 | -22.89 | 131.95 | 0.5106 | |
| 0 | 2 | 0 | 1 | -12.35 | 151.62 | -23.19 | 129.85 | 0.5030 | |
| 0 | 2 | 0 | 1 | -13.28 | 148.16 | -26.64 | 127.37 | 0.5513 | |
| 2 | 40 | 1 | 23 | -12.16 | 148.46 | -26.34 | 125.99 | 0.5381 | |
| 0 | 7 | 0 | 4 | -12.98 | 147.98 | -26.82 | 126.74 | 0.5507 | |
| 5 | -15 | 3 | -15 | -12.47 | 148.23 | -26.57 | 126.24 | 0.5436 | |
| 0 | 18 | 0 | 11 | -11.80 | 148.40 | -26.40 | 125.38 | 0.5359 | |
| 2 | -15 | 1 | -15 | -12.14 | 147.93 | -26.88 | 125.42 | 0.5444 | |
| 0 | 3 | 0 | 2 | -12.39 | 147.68 | -27.13 | 125.54 | 0.5494 | |
| 1 | 80 | 1 | 48 | -13.37 | 147.25 | -27.56 | 126.57 | 0.5626 | |
| 6 | -21 | 4 | -21 | -13.63 | 146.88 | -27.92 | 126.59 | 0.5690 | |
| 0 | 2 | 0 | 1 | -13.08 | 146.77 | -28.04 | 125.67 | 0.5657 | |
| 0 | 3 | 0 | 2 | -11.92 | 144.99 | -29.81 | 122.33 | 0.5778 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
