groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler

3867 133 950 79 553 -11.47 158.18 25.37 233.82 0.5219


previous   or   next   day for the same group / back to the solar disc

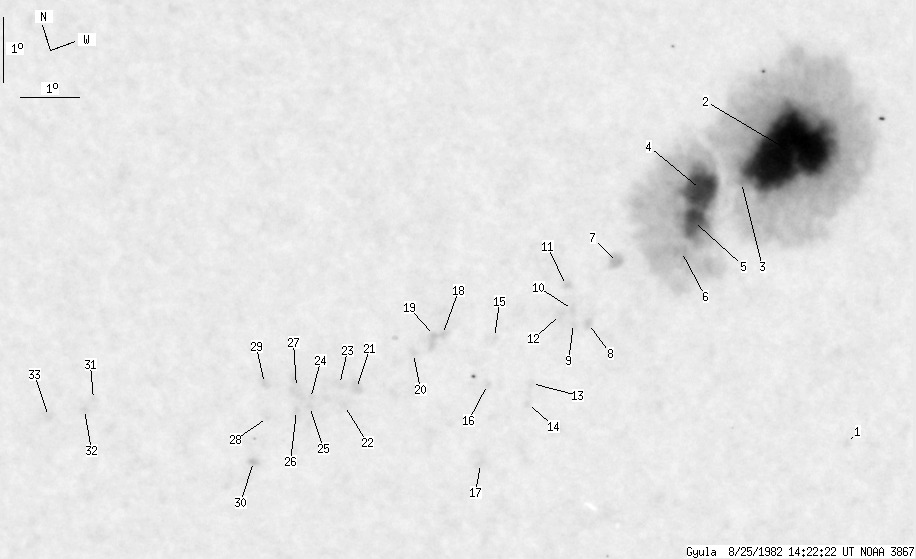

Gyula 1982-08-25 14:16:06 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler

1 0 1 0 1 -16.20 159.03 26.28 228.02 0.5741
2 95 903 56 525 -11.34 159.04 26.23 235.04 0.5309
3 1 -2 1 -2 -11.45 158.15 25.34 233.93 0.5211
4 23 -2 14 -2 -11.36 157.37 24.56 233.19 0.5110
5 11 -2 6 -2 -11.84 157.14 24.33 232.17 0.5126
6 3 -2 2 -2 -12.23 156.81 24.05 231.25 0.5128
7 0 5 0 3 -12.01 155.64 22.83 230.10 0.4966
8 0 1 0 1 -12.76 154.98 22.17 228.11 0.4963
9 0 1 0 0 -12.69 154.76 21.95 227.93 0.4932
10 0 2 0 1 -12.52 154.77 21.99 228.25 0.4919
11 0 1 0 1 -12.07 154.73 21.95 228.90 0.4870
12 0 1 0 1 -12.49 154.52 21.77 228.00 0.4892
13 0 1 0 1 -13.37 153.80 20.99 225.62 0.4895
14 0 1 0 1 -13.68 153.64 20.88 225.01 0.4917
15 0 1 0 0 -12.47 153.33 20.58 226.43 0.4757
16 0 1 0 0 -13.14 153.06 20.25 224.94 0.4791
17 0 1 0 1 -14.39 152.73 19.92 222.63 0.4892
18 0 2 0 1 -12.12 152.47 19.66 225.66 0.4618
19 0 4 0 2 -12.17 152.32 19.55 225.43 0.4610
20 0 1 0 1 -12.26 151.94 19.18 224.75 0.4580
21 0 3 0 2 -12.50 150.81 18.00 222.55 0.4481
22 0 1 0 0 -12.67 150.61 17.85 222.04 0.4485
23 0 3 0 1 -12.32 150.61 17.85 222.59 0.4445
24 0 1 0 1 -12.37 150.08 17.33 221.65 0.4396
25 0 1 0 1 -12.49 150.03 17.28 221.39 0.4405
26 0 1 0 1 -12.48 149.80 17.01 220.97 0.4376
27 0 5 0 3 -12.18 149.87 17.06 221.52 0.4345
28 0 0 0 0 -12.43 149.31 16.56 220.28 0.4323
29 0 3 0 1 -11.90 149.39 16.58 221.12 0.4263
30 0 2 0 1 -13.01 148.91 16.10 218.61 0.4347
31 0 1 0 1 -11.20 146.62 13.87 217.21 0.3904
32 0 1 0 1 -11.30 146.43 13.68 216.68 0.3900
33 0 1 0 0 -11.24 145.81 13.03 215.44 0.3830


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
