group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
147 | 1096 | 81 | 575 | 18.34 | 153.63 | 9.55 | 325.38 | 0.2623 |
previous
or next day for the same group /

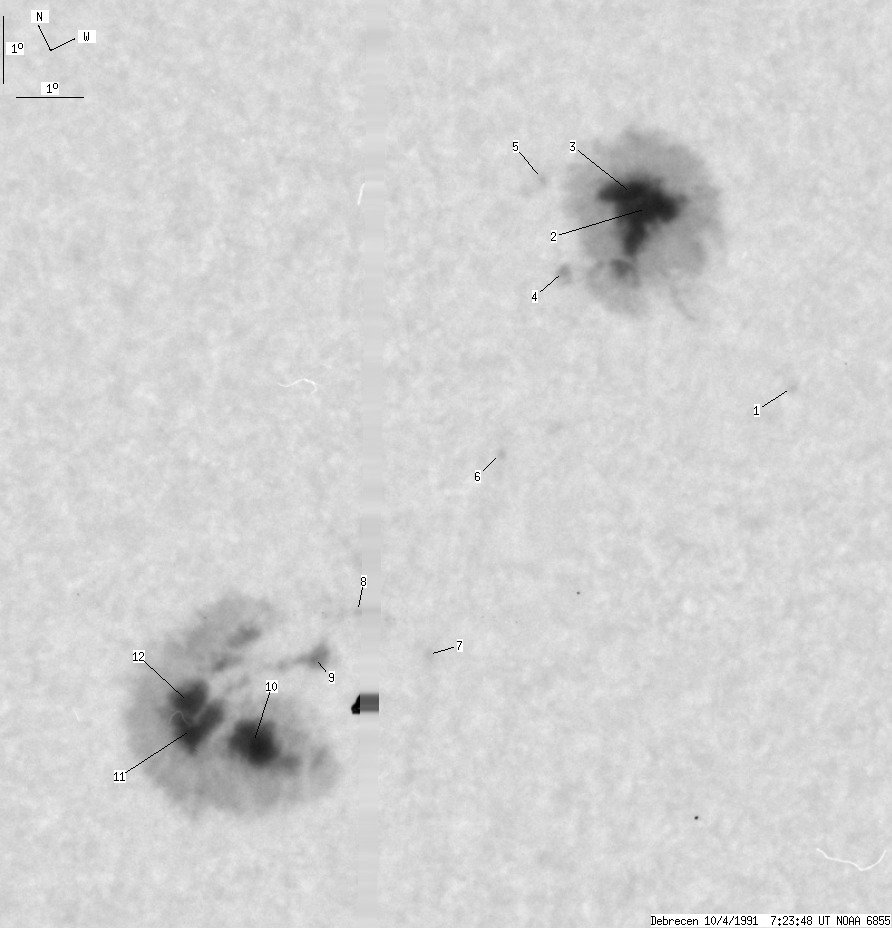

back to the solar disc Debrecen 1991-10-04 07:19:48 UT ![]() |
spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
0 | 2 | 0 | 1 | 17.20 | 159.49 | 15.41 | 306.57 | 0.3174 | |
41 | 489 | 23 | 262 | 20.57 | 158.88 | 14.79 | 315.76 | 0.3441 | |
20 | -2 | 11 | -2 | 20.74 | 158.91 | 14.86 | 315.99 | 0.3468 | |
1 | -2 | 1 | -2 | 20.19 | 157.32 | 13.25 | 317.93 | 0.3225 | |
0 | 1 | 0 | 0 | 21.59 | 157.75 | 13.68 | 320.00 | 0.3437 | |
0 | 1 | 0 | 1 | 18.17 | 155.04 | 10.97 | 318.31 | 0.2732 | |
0 | 2 | 0 | 1 | 15.95 | 152.57 | 8.52 | 319.03 | 0.2183 | |
0 | 1 | 0 | 1 | 17.06 | 151.84 | 7.76 | 324.81 | 0.2249 | |
10 | 20 | 5 | 11 | 16.72 | 150.98 | 6.90 | 326.98 | 0.2121 | |
31 | 580 | 17 | 298 | 15.97 | 149.49 | 5.40 | 331.07 | 0.1881 | |
24 | -10 | 13 | -10 | 16.59 | 148.79 | 4.71 | 335.70 | 0.1921 | |
20 | -10 | 11 | -10 | 16.89 | 148.93 | 4.86 | 335.70 | 0.1978 |
Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
B | - Heliographic latitude B; positive: North, negative: South | |
L | - Heliographic longitude L | |
LCM | - Longitudinal distance from the Sun's central meridian | |
Pos. angle | - Position angle | |
r | - Distance from the centre of Sun's disc in terms of Sun's radius |
