group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
65 | 393 | 76 | 448 | 18.77 | 154.74 | 63.90 | 287.86 | 0.8918 |
previous
or next day for the same group /

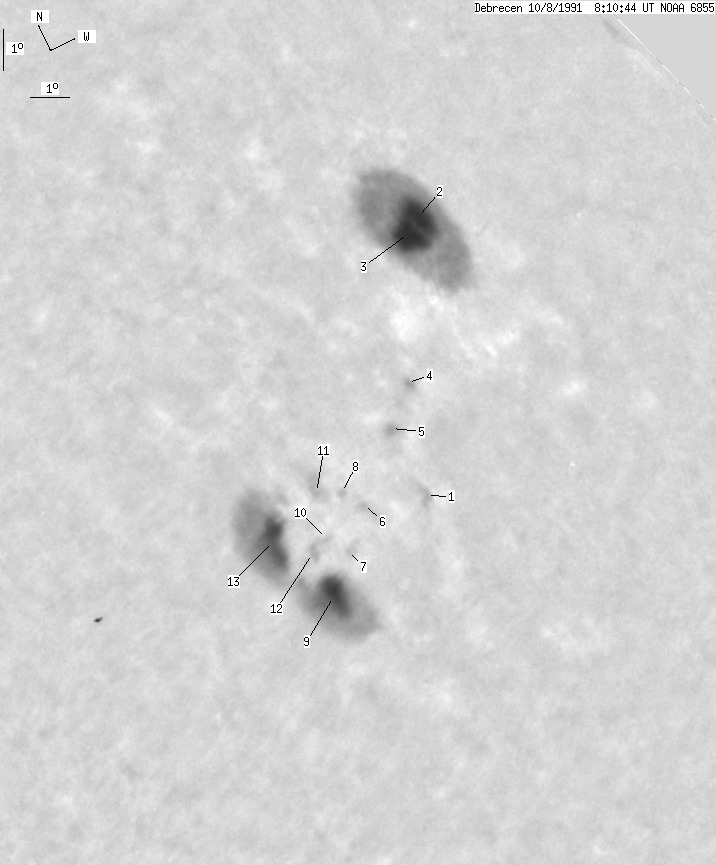

back to the solar disc Debrecen 1991-10-08 08:12:53 UT ![]() |
spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
0 | 4 | 0 | 5 | 16.88 | 152.87 | 62.05 | 285.79 | 0.8804 | |
15 | 191 | 20 | 252 | 20.18 | 159.48 | 68.64 | 289.24 | 0.9275 | |
18 | -2 | 24 | -2 | 20.09 | 158.75 | 67.91 | 289.16 | 0.9229 | |
0 | 2 | 0 | 3 | 18.33 | 155.00 | 64.17 | 287.35 | 0.8970 | |
0 | 4 | 0 | 4 | 17.93 | 153.49 | 62.66 | 286.95 | 0.8855 | |
0 | 2 | 0 | 2 | 17.37 | 151.18 | 60.34 | 286.43 | 0.8667 | |
0 | 2 | 0 | 2 | 16.87 | 149.99 | 59.16 | 285.91 | 0.8565 | |
0 | 1 | 0 | 2 | 17.66 | 150.95 | 60.13 | 286.78 | 0.8650 | |
20 | 178 | 20 | 168 | 16.49 | 148.86 | 58.03 | 285.53 | 0.8464 | |
0 | 1 | 0 | 1 | 17.33 | 149.69 | 58.85 | 286.47 | 0.8540 | |
0 | 5 | 0 | 6 | 17.97 | 150.32 | 59.48 | 287.17 | 0.8597 | |
0 | 3 | 0 | 3 | 17.19 | 149.17 | 58.35 | 286.34 | 0.8495 | |
12 | -9 | 12 | -9 | 17.67 | 148.52 | 57.70 | 286.95 | 0.8441 |
Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
B | - Heliographic latitude B; positive: North, negative: South | |
L | - Heliographic longitude L | |
LCM | - Longitudinal distance from the Sun's central meridian | |
Pos. angle | - Position angle | |
r | - Distance from the centre of Sun's disc in terms of Sun's radius |
