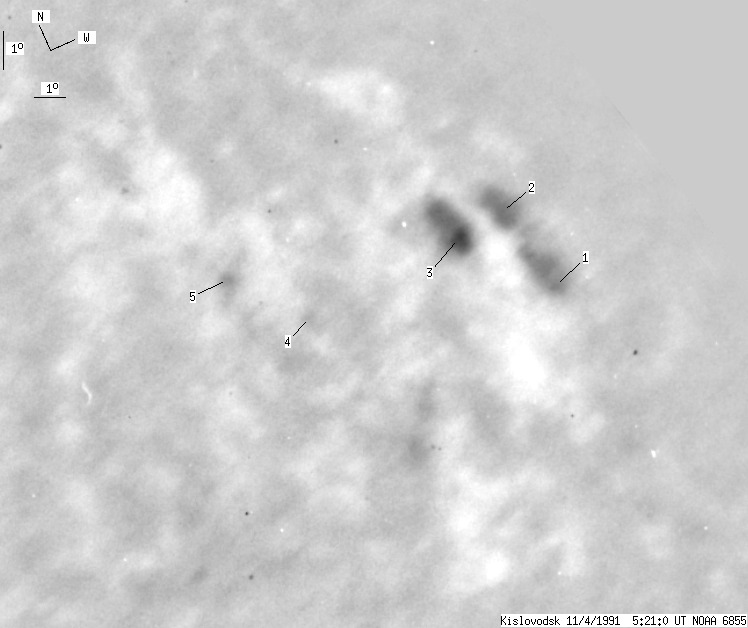

Kislovodsk 1991-11-04 05:21:00 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 13 | 135 | 23 | 230 | 15.35 | 168.81 | 72.52 | 284.85 | 0.9521 | |
|
previous
day for the same group /
back to the solar disc Kislovodsk 1991-11-04 05:21:00 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 2 | 81 | 4 | 147 | 14.18 | 169.98 | 73.69 | 283.59 | 0.9586 | |
| 5 | -1 | 9 | -1 | 15.55 | 170.17 | 73.88 | 285.02 | 0.9596 | |
| 6 | 46 | 10 | 72 | 15.61 | 167.54 | 71.25 | 285.12 | 0.9461 | |
| 0 | 2 | 0 | 3 | 15.85 | 160.69 | 64.40 | 285.64 | 0.9027 | |
| 0 | 6 | 0 | 8 | 16.99 | 159.24 | 62.95 | 287.01 | 0.8926 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
