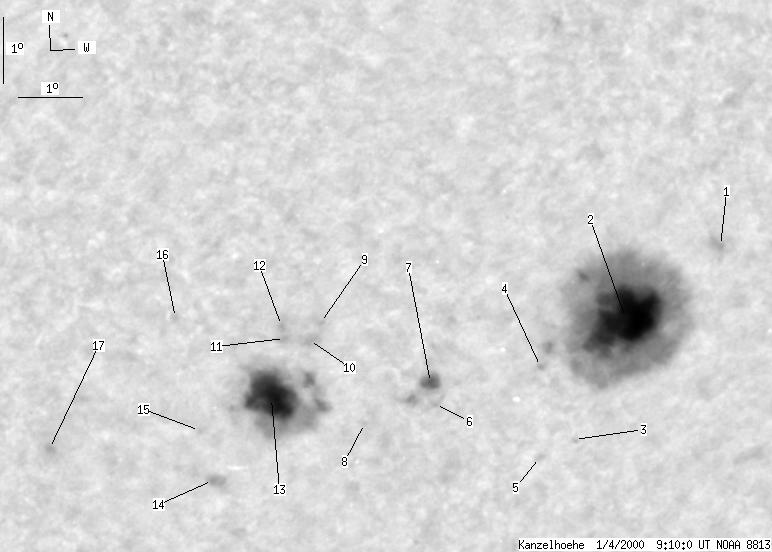

Kanzelhoehe 2000-01-04 09:10:04 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 89 | 509 | 46 | 262 | -15.57 | 336.31 | 12.81 | 224.49 | 0.3057 | |
|
previous
or next day for the same group /
back to the solar disc Kanzelhoehe 2000-01-04 09:10:04 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 3 | 0 | 2 | -14.04 | 339.47 | 15.98 | 234.89 | 0.3279 | |
| 61 | 341 | 32 | 178 | -15.17 | 338.04 | 14.54 | 229.54 | 0.3200 | |
| 0 | 1 | 0 | 0 | -17.05 | 337.36 | 13.87 | 223.86 | 0.3323 | |
| 0 | 1 | 0 | 0 | -16.00 | 336.67 | 13.18 | 224.82 | 0.3122 | |
| 0 | 1 | 0 | 0 | -17.34 | 336.80 | 13.31 | 222.10 | 0.3294 | |
| 0 | 2 | 0 | 1 | -16.52 | 335.05 | 11.56 | 220.00 | 0.3003 | |
| 1 | 13 | 0 | 7 | -16.22 | 334.92 | 11.43 | 220.35 | 0.2952 | |
| 0 | 0 | 0 | 0 | -16.82 | 333.91 | 10.42 | 216.50 | 0.2924 | |
| 0 | 1 | 0 | 0 | -15.24 | 333.12 | 9.64 | 217.97 | 0.2637 | |
| 0 | 3 | 0 | 1 | -15.52 | 332.96 | 9.47 | 216.83 | 0.2657 | |
| 0 | 1 | 0 | 1 | -15.49 | 332.56 | 9.07 | 215.73 | 0.2613 | |
| 0 | 1 | 0 | 0 | -15.30 | 332.47 | 8.97 | 215.91 | 0.2577 | |
| 27 | 134 | 14 | 69 | -16.46 | 332.35 | 8.85 | 212.96 | 0.2724 | |
| 0 | 4 | 0 | 2 | -17.77 | 331.45 | 7.95 | 207.84 | 0.2835 | |
| 0 | 0 | 0 | 0 | -16.94 | 331.24 | 7.75 | 208.71 | 0.2699 | |
| 0 | 1 | 0 | 0 | -15.17 | 330.80 | 7.31 | 210.87 | 0.2404 | |
| 0 | 2 | 0 | 1 | -17.23 | 328.83 | 5.34 | 200.32 | 0.2573 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
