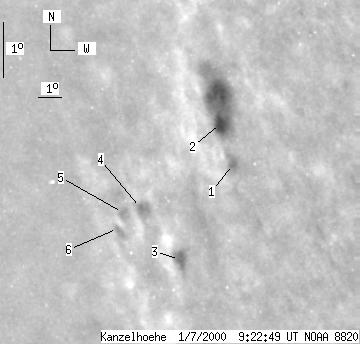

Kanzelhoehe 2000-01-07 09:24:18 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 2 | 43 | 3 | 58 | -15.15 | 216.39 | -67.46 | 104.89 | 0.9237 | |
|
previous
or next day for the same group /
back to the solar disc Kanzelhoehe 2000-01-07 09:24:18 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 2 | 0 | 3 | -15.41 | 217.36 | -66.49 | 105.21 | 0.9179 | |
| 2 | 34 | 3 | 43 | -14.81 | 217.24 | -66.61 | 104.55 | 0.9185 | |
| 0 | 3 | 0 | 5 | -16.80 | 214.08 | -69.77 | 106.56 | 0.9387 | |
| 0 | 2 | 0 | 4 | -15.92 | 212.90 | -70.97 | 105.58 | 0.9452 | |
| 0 | 1 | 0 | 2 | -15.94 | 211.93 | -71.92 | 105.58 | 0.9503 | |
| 0 | 1 | 0 | 1 | -16.17 | 211.50 | -72.36 | 105.81 | 0.9527 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
