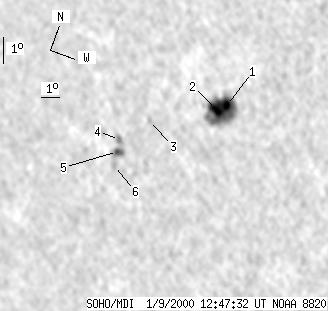

SOHO MDI 2000-01-09 12:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 24 | 141 | 15 | 90 | -14.80 | 217.17 | -38.69 | 108.54 | 0.6395 | |
|
previous
or next day for the same group /
back to the solar disc SOHO MDI 2000-01-09 12:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 6 | 114 | 4 | 72 | -14.11 | 218.45 | -37.42 | 107.90 | 0.6216 | |
| 16 | -1 | 10 | -1 | -14.36 | 217.99 | -37.87 | 108.16 | 0.6282 | |
| 0 | 4 | 0 | 2 | -15.49 | 214.67 | -41.19 | 108.86 | 0.6730 | |
| 0 | 7 | 0 | 5 | -16.52 | 213.22 | -42.64 | 109.92 | 0.6932 | |
| 2 | 10 | 1 | 7 | -17.00 | 213.20 | -42.66 | 110.59 | 0.6947 | |
| 0 | 6 | 0 | 4 | -17.55 | 213.14 | -42.73 | 111.35 | 0.6970 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
