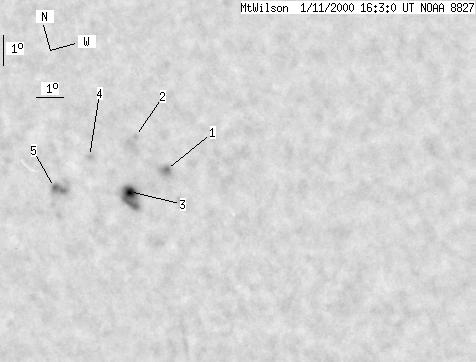

Mount Wilson 2000-01-11 16:03:00 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 5 | 60 | 3 | 31 | -11.82 | 243.40 | 15.87 | 242.95 | 0.3017 | |
|
previous
or next day for the same group /
back to the solar disc Mount Wilson 2000-01-11 16:03:00 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 7 | 0 | 4 | -11.68 | 245.10 | 17.57 | 245.55 | 0.3262 | |
| 0 | 2 | 0 | 1 | -10.35 | 244.26 | 16.73 | 248.60 | 0.3055 | |
| 4 | 39 | 2 | 20 | -12.10 | 243.64 | 16.11 | 242.51 | 0.3072 | |
| 0 | 2 | 0 | 1 | -10.63 | 242.51 | 14.98 | 245.61 | 0.2803 | |
| 1 | 10 | 1 | 5 | -11.35 | 241.07 | 13.54 | 240.97 | 0.2637 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
