Gyula 2000-01-13 11:39:43 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 27 | 254 | 27 | 244 | 15.13 | 147.45 | -56.14 | 69.41 | 0.8576 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-01-13 11:39:43 UT |

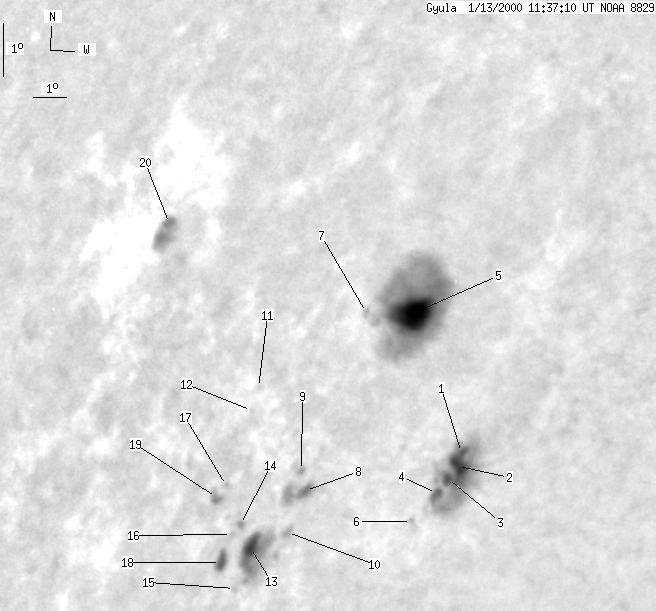

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 1 | 57 | 1 | 50 | 14.06 | 150.50 | -53.12 | 69.75 | 0.8293 | |
| 3 | -1 | 3 | -1 | 13.74 | 150.48 | -53.12 | 70.12 | 0.8284 | |
| 1 | -1 | 1 | -1 | 13.55 | 150.23 | -53.36 | 70.42 | 0.8302 | |
| 1 | -1 | 1 | -1 | 13.42 | 150.13 | -53.50 | 70.61 | 0.8311 | |
| 15 | 131 | 14 | 125 | 16.34 | 148.09 | -55.50 | 67.87 | 0.8559 | |
| 0 | 1 | 0 | 1 | 12.88 | 149.55 | -54.05 | 71.40 | 0.8348 | |
| 0 | 1 | 0 | 1 | 16.42 | 146.78 | -56.85 | 68.18 | 0.8671 | |
| 1 | 9 | 1 | 9 | 13.47 | 146.47 | -57.12 | 71.57 | 0.8630 | |
| 0 | 1 | 0 | 1 | 13.91 | 146.22 | -57.40 | 71.14 | 0.8662 | |
| 0 | 1 | 0 | 1 | 12.82 | 146.21 | -57.39 | 72.37 | 0.8639 | |
| 0 | 0 | 0 | 0 | 15.31 | 144.21 | -59.42 | 70.11 | 0.8850 | |
| 0 | 0 | 0 | 0 | 14.94 | 144.20 | -59.42 | 70.52 | 0.8843 | |
| 3 | 31 | 3 | 31 | 12.61 | 145.31 | -58.28 | 72.83 | 0.8709 | |
| 0 | 1 | 0 | 1 | 12.99 | 144.80 | -58.79 | 72.53 | 0.8757 | |
| 0 | 1 | 0 | 1 | 12.09 | 145.15 | -58.48 | 73.46 | 0.8715 | |
| 0 | 1 | 0 | 1 | 12.96 | 144.64 | -58.98 | 72.61 | 0.8772 | |
| 0 | 1 | 0 | 1 | 13.75 | 144.09 | -59.54 | 71.86 | 0.8830 | |
| 1 | 4 | 1 | 4 | 12.44 | 144.47 | -59.12 | 73.22 | 0.8774 | |
| 0 | 3 | 0 | 3 | 13.57 | 143.88 | -59.75 | 72.11 | 0.8843 | |
| 1 | 11 | 2 | 14 | 18.06 | 139.24 | -64.36 | 68.35 | 0.9238 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
