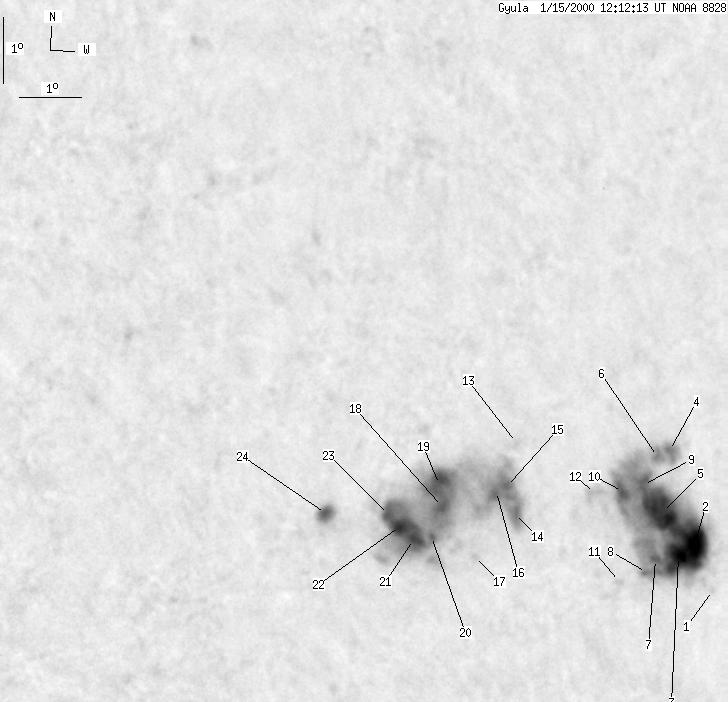

Gyula 2000-01-15 12:09:24 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 84 | 483 | 45 | 254 | -21.93 | 165.84 | -11.15 | 149.36 | 0.3522 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-01-15 12:09:24 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 1 | 0 | 0 | -23.07 | 168.72 | -8.25 | 157.49 | 0.3463 | |
| 22 | 200 | 11 | 105 | -22.26 | 168.49 | -8.50 | 155.85 | 0.3358 | |
| -2 | -2 | -2 | -2 | -22.42 | 168.27 | -8.72 | 155.51 | 0.3397 | |
| 1 | -2 | 1 | -2 | -20.90 | 168.03 | -8.94 | 152.79 | 0.3190 | |
| 22 | -2 | 12 | -2 | -21.81 | 167.97 | -9.03 | 153.93 | 0.3329 | |
| 1 | -2 | 1 | -2 | -21.00 | 167.83 | -9.14 | 152.45 | 0.3220 | |
| 1 | -2 | 0 | -2 | -22.57 | 167.83 | -9.15 | 154.68 | 0.3449 | |
| 1 | -2 | 0 | -2 | -22.83 | 167.63 | -9.33 | 154.59 | 0.3500 | |
| 2 | -2 | 1 | -2 | -21.41 | 167.64 | -9.35 | 152.55 | 0.3295 | |
| 3 | -2 | 1 | -2 | -21.53 | 167.33 | -9.66 | 151.95 | 0.3336 | |
| 0 | 1 | 0 | 0 | -22.95 | 167.21 | -9.77 | 153.74 | 0.3547 | |
| 0 | 2 | 0 | 1 | -21.63 | 166.80 | -10.18 | 150.87 | 0.3391 | |
| 0 | 3 | 0 | 1 | -20.87 | 165.53 | -11.44 | 146.74 | 0.3395 | |
| 2 | 262 | 1 | 139 | -21.98 | 165.49 | -11.48 | 148.49 | 0.3548 | |
| 1 | -14 | 1 | -14 | -21.57 | 165.35 | -11.62 | 147.52 | 0.3504 | |
| 3 | -14 | 2 | -14 | -21.54 | 165.29 | -11.70 | 147.29 | 0.3507 | |
| 0 | 1 | 0 | 1 | -22.69 | 164.79 | -12.18 | 148.12 | 0.3703 | |
| 2 | -14 | 1 | -14 | -21.72 | 164.31 | -12.69 | 145.53 | 0.3620 | |
| 7 | -14 | 4 | -14 | -21.57 | 164.24 | -12.73 | 145.19 | 0.3605 | |
| 1 | -14 | 1 | -14 | -22.40 | 164.08 | -12.89 | 146.23 | 0.3726 | |
| 10 | -14 | 5 | -14 | -22.34 | 163.85 | -13.14 | 145.64 | 0.3742 | |
| -21 | -14 | -21 | -14 | -22.13 | 163.64 | -13.35 | 144.87 | 0.3734 | |
| 2 | -14 | 1 | -14 | -22.08 | 163.38 | -13.59 | 144.32 | 0.3750 | |
| 3 | 13 | 2 | 7 | -22.08 | 162.37 | -14.61 | 142.41 | 0.3848 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
