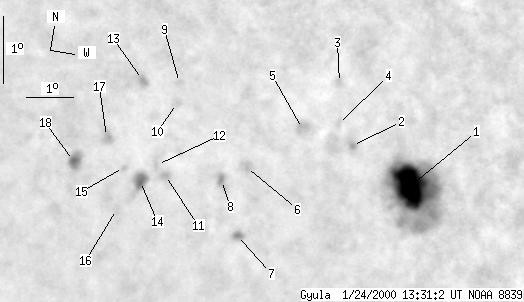

Gyula 2000-01-24 13:34:11 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 18 | 140 | 13 | 104 | 11.32 | 101.66 | 43.96 | 291.07 | 0.7311 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-01-24 13:34:11 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 16 | 83 | 12 | 62 | 11.37 | 103.19 | 45.49 | 290.46 | 0.7485 | |
| 0 | 16 | 0 | 12 | 11.75 | 101.83 | 44.13 | 291.52 | 0.7351 | |
| 0 | 2 | 0 | 2 | 12.71 | 101.59 | 43.84 | 292.88 | 0.7358 | |
| 0 | 2 | 0 | 1 | 12.07 | 101.58 | 43.84 | 292.06 | 0.7332 | |
| 0 | 4 | 0 | 3 | 11.89 | 100.80 | 43.09 | 292.16 | 0.7242 | |
| 0 | 1 | 0 | 1 | 10.99 | 99.67 | 41.96 | 291.49 | 0.7078 | |
| 0 | 1 | 0 | 1 | 10.00 | 99.52 | 41.81 | 290.22 | 0.7021 | |
| 0 | 4 | 0 | 3 | 10.66 | 99.14 | 41.44 | 291.29 | 0.7004 | |
| 0 | 1 | 0 | 1 | 12.05 | 98.18 | 40.44 | 293.65 | 0.6948 | |
| 0 | 3 | 0 | 2 | 11.72 | 98.13 | 40.39 | 293.22 | 0.6928 | |
| 0 | 1 | 0 | 1 | 10.53 | 98.02 | 40.31 | 291.65 | 0.6866 | |
| 0 | 3 | 0 | 2 | 10.76 | 97.80 | 40.09 | 292.06 | 0.6850 | |
| 0 | 1 | 0 | 1 | 11.86 | 97.42 | 39.71 | 293.77 | 0.6856 | |
| 2 | 8 | 1 | 5 | 10.32 | 97.50 | 39.80 | 291.61 | 0.6797 | |
| 0 | 1 | 0 | 1 | 10.53 | 97.12 | 39.37 | 292.11 | 0.6755 | |
| 0 | 2 | 0 | 1 | 9.86 | 97.02 | 39.28 | 291.22 | 0.6715 | |
| 0 | 4 | 0 | 3 | 10.93 | 96.74 | 39.00 | 292.86 | 0.6729 | |
| 0 | 3 | 0 | 2 | 10.44 | 96.11 | 38.37 | 292.50 | 0.6631 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
