| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 49 | 337 | 31 | 209 | -29.58 | 21.62 | 29.67 | 226.02 | 0.6003 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-01-29 13:28:21 UT ![]() |

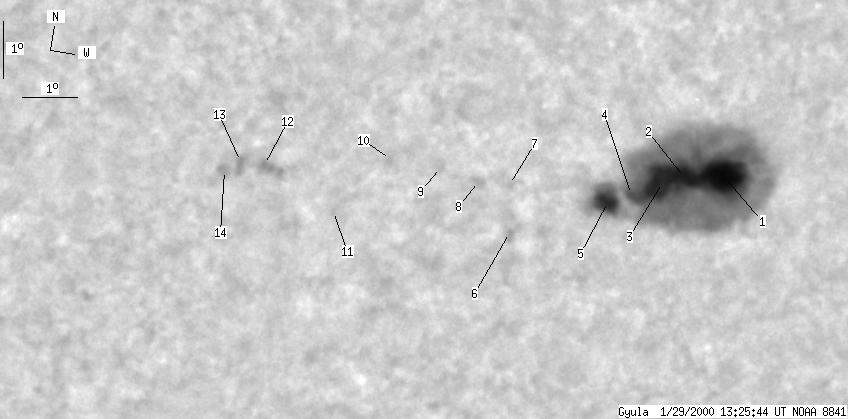

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 45 | 316 | 28 | 196 | -29.29 | 22.68 | 30.72 | 227.31 | 0.6085 | |
| -1 | -1 | -1 | -1 | -29.47 | 21.97 | 30.02 | 226.51 | 0.6026 | |
| -1 | -1 | -1 | -1 | -29.56 | 21.72 | 29.77 | 226.17 | 0.6009 | |
| 1 | -1 | 1 | -1 | -29.94 | 21.15 | 29.19 | 225.17 | 0.5982 | |
| 3 | -1 | 2 | -1 | -30.13 | 20.81 | 28.86 | 224.63 | 0.5964 | |
| 0 | 1 | 0 | 1 | -31.02 | 19.25 | 27.29 | 222.05 | 0.5890 | |
| 0 | 2 | 0 | 1 | -30.25 | 18.85 | 26.89 | 222.70 | 0.5783 | |
| 0 | 2 | 0 | 1 | -30.32 | 18.26 | 26.30 | 222.05 | 0.5733 | |
| 0 | 1 | 0 | 1 | -30.24 | 17.46 | 25.51 | 221.38 | 0.5649 | |
| 0 | 4 | 0 | 3 | -30.29 | 16.51 | 24.55 | 220.33 | 0.5564 | |
| 0 | 1 | 0 | 0 | -31.35 | 15.89 | 23.94 | 218.30 | 0.5612 | |
| 0 | 5 | 0 | 3 | -30.90 | 14.36 | 22.41 | 217.22 | 0.5430 | |
| 0 | 2 | 0 | 1 | -30.90 | 13.88 | 21.93 | 216.66 | 0.5388 | |
| 0 | 3 | 0 | 2 | -31.07 | 13.65 | 21.70 | 216.18 | 0.5386 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
