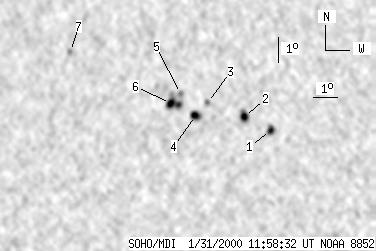

SOHO MDI 2000-01-31 11:58:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 17 | 76 | 10 | 41 | 9.70 | 305.79 | -20.68 | 52.87 | 0.4378 | |
|
previous
or next day for the same group /
back to the solar disc SOHO MDI 2000-01-31 11:58:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 2 | 10 | 1 | 5 | 8.67 | 308.83 | -17.64 | 50.49 | 0.3900 | |
| 5 | 13 | 3 | 7 | 9.27 | 307.74 | -18.73 | 51.03 | 0.4095 | |
| 0 | 5 | 0 | 3 | 9.88 | 306.18 | -20.30 | 52.13 | 0.4348 | |
| 5 | 13 | 3 | 7 | 9.38 | 305.71 | -20.76 | 53.68 | 0.4359 | |
| 0 | 7 | 0 | 4 | 10.28 | 305.02 | -21.45 | 52.93 | 0.4529 | |
| 5 | 24 | 3 | 13 | 9.90 | 304.63 | -21.84 | 54.12 | 0.4543 | |
| 0 | 4 | 0 | 2 | 12.17 | 300.15 | -26.32 | 55.32 | 0.5293 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
