| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 70 | 429 | 42 | 254 | 25.75 | 291.49 | -10.63 | 17.27 | 0.5547 | |
|
previous
or next day for the same group /

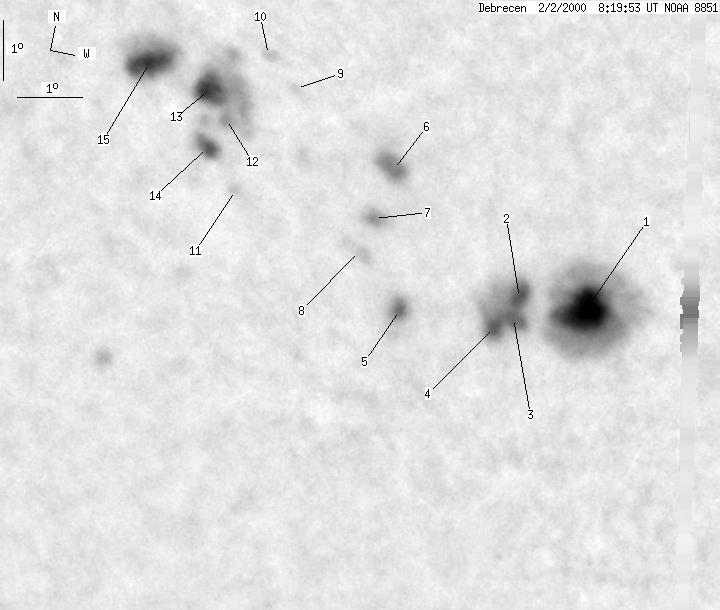

back to the solar disc Debrecen 2000-02-02 08:15:45 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 34 | 231 | 20 | 135 | 25.02 | 294.59 | -7.54 | 12.98 | 0.5313 | |
| 5 | -1 | 3 | -1 | 24.95 | 293.53 | -8.58 | 14.73 | 0.5340 | |
| 3 | -1 | 2 | -1 | 24.59 | 293.56 | -8.55 | 14.87 | 0.5287 | |
| 2 | -1 | 1 | -1 | 24.41 | 293.32 | -8.81 | 15.41 | 0.5271 | |
| 2 | 19 | 1 | 11 | 24.36 | 291.74 | -10.39 | 18.01 | 0.5332 | |
| 2 | 13 | 1 | 8 | 26.58 | 290.96 | -11.17 | 17.85 | 0.5672 | |
| 0 | 9 | 0 | 5 | 25.71 | 290.91 | -11.22 | 18.47 | 0.5557 | |
| 0 | 8 | 0 | 5 | 25.15 | 290.87 | -11.25 | 18.88 | 0.5481 | |
| 0 | 1 | 0 | 0 | 27.59 | 288.94 | -13.15 | 20.07 | 0.5898 | |
| 0 | 2 | 0 | 1 | 28.12 | 288.31 | -13.82 | 20.64 | 0.6000 | |
| 0 | 2 | 0 | 1 | 25.70 | 288.61 | -13.50 | 21.87 | 0.5668 | |
| 1 | 92 | 1 | 56 | 26.86 | 288.03 | -14.10 | 21.89 | 0.5851 | |
| 5 | -12 | 3 | -12 | 27.28 | 287.55 | -14.58 | 22.25 | 0.5931 | |
| 4 | -12 | 3 | -12 | 26.30 | 287.91 | -14.22 | 22.47 | 0.5785 | |
| 12 | 52 | 7 | 32 | 27.52 | 286.45 | -15.68 | 23.56 | 0.6021 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
