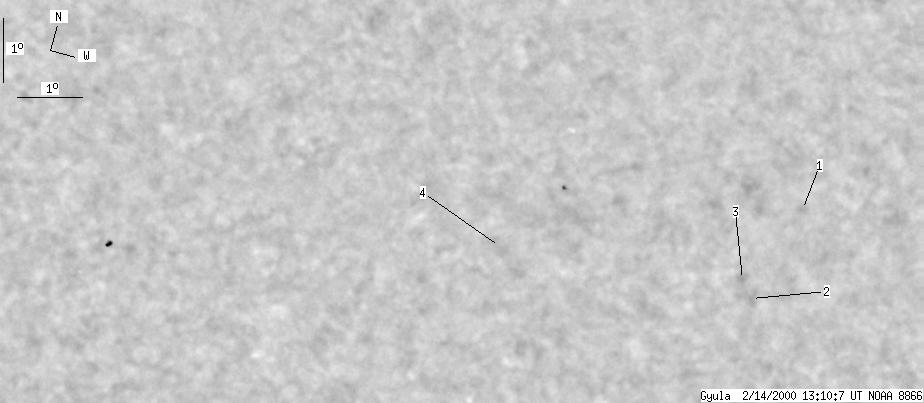

Gyula 2000-02-14 13:10:20 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 5 | 0 | 3 | 16.25 | 150.65 | 9.21 | 338.57 | 0.4212 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-02-14 13:10:20 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 2 | 0 | 1 | 17.39 | 151.51 | 10.07 | 337.75 | 0.4425 | |
| 0 | 1 | 0 | 1 | 15.74 | 151.07 | 9.64 | 337.10 | 0.4159 | |
| 0 | 1 | 0 | 1 | 15.99 | 150.86 | 9.42 | 337.80 | 0.4182 | |
| 0 | 1 | 0 | 0 | 15.32 | 146.92 | 5.49 | 346.21 | 0.3886 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
