| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 11 | 67 | 6 | 33 | -23.62 | 117.83 | -11.69 | 147.74 | 0.3476 | |
|
previous
or next day for the same group /

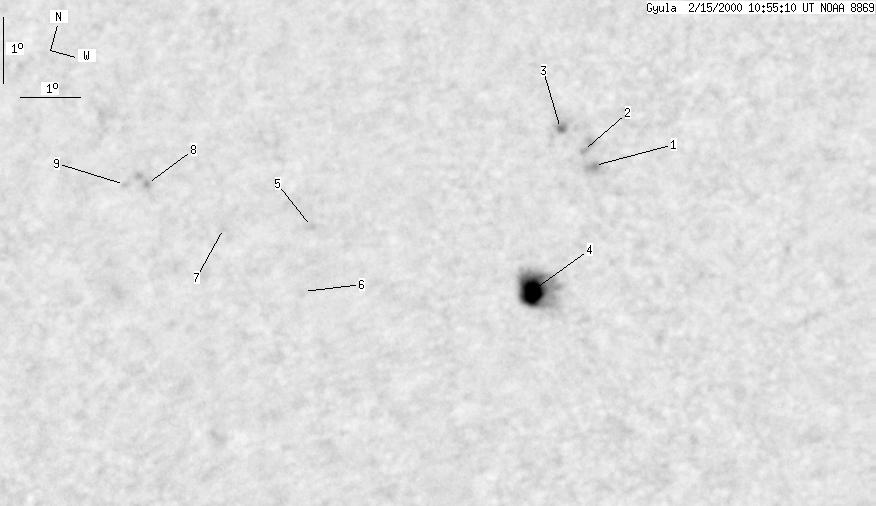

back to the solar disc Gyula 2000-02-15 10:54:12 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 7 | 0 | 4 | -22.00 | 119.22 | -10.29 | 147.85 | 0.3127 | |
| 0 | 2 | 0 | 1 | -21.79 | 118.92 | -10.59 | 146.74 | 0.3125 | |
| 0 | 6 | 0 | 3 | -21.58 | 118.52 | -11.00 | 145.36 | 0.3135 | |
| 11 | 41 | 6 | 21 | -24.11 | 118.68 | -10.84 | 150.16 | 0.3464 | |
| 0 | 1 | 0 | 0 | -24.09 | 114.75 | -14.76 | 142.25 | 0.3816 | |
| 0 | 2 | 0 | 1 | -25.14 | 114.79 | -14.71 | 144.12 | 0.3939 | |
| 0 | 1 | 0 | 0 | -24.53 | 113.23 | -16.27 | 140.43 | 0.4019 | |
| 0 | 6 | 0 | 3 | -24.18 | 111.87 | -17.64 | 137.66 | 0.4122 | |
| 0 | 1 | 0 | 0 | -24.28 | 111.46 | -18.05 | 137.22 | 0.4177 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
