| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 12 | 70 | 11 | 60 | -13.16 | 62.45 | -55.69 | 101.29 | 0.8220 | |
|
previous
or next day for the same group /

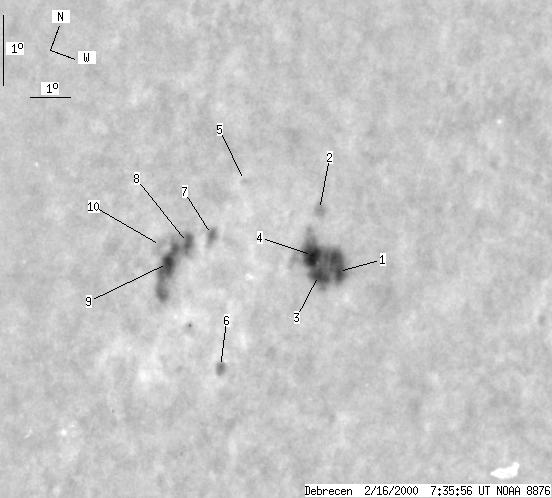

back to the solar disc Debrecen 2000-02-16 07:38:31 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 1 | 40 | 1 | 33 | -13.14 | 64.54 | -53.62 | 101.30 | 0.8018 | |
| 0 | 2 | 0 | 2 | -12.32 | 63.81 | -54.32 | 100.27 | 0.8088 | |
| 1 | -1 | 1 | -1 | -13.22 | 64.03 | -54.12 | 101.39 | 0.8069 | |
| 5 | -1 | 4 | -1 | -12.96 | 63.79 | -54.36 | 101.07 | 0.8092 | |
| 0 | 0 | 0 | 0 | -12.07 | 61.79 | -56.36 | 99.96 | 0.8288 | |
| 0 | 2 | 0 | 2 | -14.78 | 61.84 | -56.29 | 103.24 | 0.8285 | |
| 0 | 3 | 0 | 2 | -12.91 | 61.10 | -57.04 | 100.97 | 0.8352 | |
| 1 | 22 | 1 | 20 | -13.08 | 60.54 | -57.62 | 101.17 | 0.8406 | |
| 4 | -8 | 4 | -8 | -13.38 | 60.09 | -58.05 | 101.52 | 0.8446 | |
| 0 | 1 | 0 | 1 | -13.18 | 59.81 | -58.35 | 101.29 | 0.8473 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
