| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 36 | 366 | 64 | 754 | -18.91 | 116.36 | 77.49 | 252.12 | 0.9670 | |
|
previous
or next day for the same group /

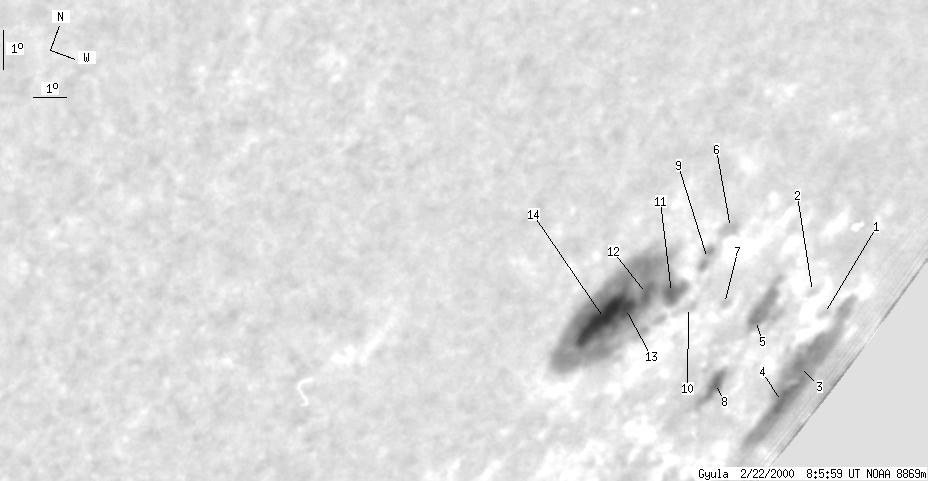

back to the solar disc Gyula 2000-02-22 08:08:00 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 1 | 0 | 4 | -17.33 | 120.72 | 81.86 | 253.55 | 0.9861 | |
| 0 | 1 | 0 | 3 | -17.31 | 118.74 | 79.87 | 253.72 | 0.9801 | |
| 2 | 89 | 7 | 309 | -18.10 | 122.04 | 83.17 | 252.68 | 0.9893 | |
| 2 | -3 | 8 | -3 | -18.62 | 122.93 | 84.06 | 252.08 | 0.9913 | |
| 1 | 23 | 2 | 48 | -18.29 | 116.74 | 77.87 | 252.82 | 0.9727 | |
| 0 | 5 | 0 | 9 | -17.58 | 112.19 | 73.33 | 253.75 | 0.9526 | |
| 0 | 1 | 0 | 2 | -18.47 | 114.51 | 75.65 | 252.74 | 0.9634 | |
| 2 | 17 | 4 | 38 | -19.39 | 117.32 | 78.45 | 251.67 | 0.9746 | |
| 0 | 8 | 0 | 13 | -18.17 | 112.23 | 73.36 | 253.14 | 0.9526 | |
| 0 | 3 | 0 | 5 | -18.91 | 113.05 | 74.18 | 252.34 | 0.9566 | |
| 4 | 218 | 6 | 323 | -18.92 | 111.84 | 72.98 | 252.36 | 0.9506 | |
| 2 | -11 | 4 | -11 | -19.18 | 110.89 | 72.02 | 252.10 | 0.9455 | |
| 23 | -11 | 33 | -11 | -19.56 | 110.55 | 71.68 | 251.70 | 0.9437 | |
| -13 | -11 | -13 | -11 | -19.88 | 110.07 | 71.20 | 251.37 | 0.9410 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
