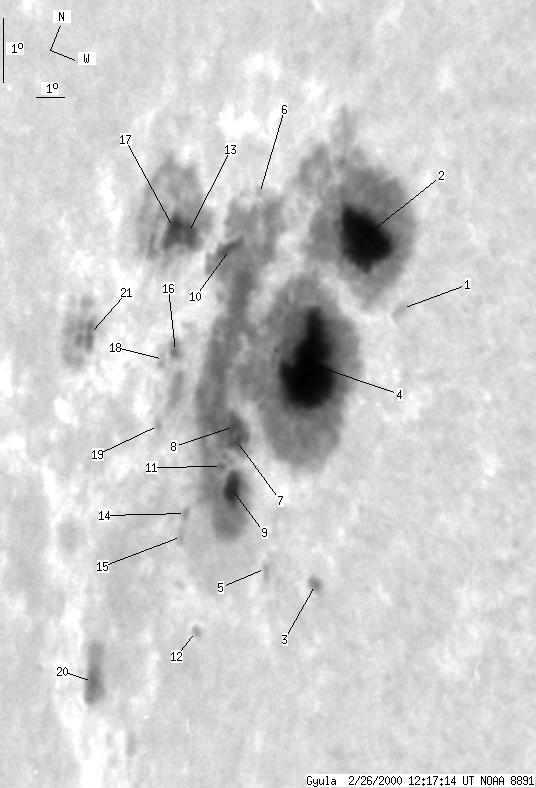

Gyula 2000-02-26 12:20:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 143 | 1328 | 161 | 1498 | -14.15 | 279.03 | -64.84 | 102.29 | 0.8990 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-02-26 12:20:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 2 | 0 | 2 | -13.71 | 282.95 | -60.91 | 101.72 | 0.8691 | |
| 43 | 1104 | 46 | 1193 | -12.71 | 281.28 | -62.59 | 100.61 | 0.8830 | |
| 0 | 3 | 0 | 3 | -18.03 | 281.43 | -62.44 | 106.66 | 0.8818 | |
| 69 | -2 | 74 | -2 | -14.73 | 280.21 | -63.66 | 102.91 | 0.8911 | |
| 0 | 1 | 0 | 1 | -17.91 | 279.61 | -64.26 | 106.48 | 0.8957 | |
| 0 | 1 | 0 | 1 | -12.26 | 277.33 | -66.54 | 100.25 | 0.9127 | |
| 1 | -2 | 2 | -2 | -16.01 | 278.04 | -65.82 | 104.36 | 0.9070 | |
| 2 | -2 | 2 | -2 | -15.85 | 277.76 | -66.11 | 104.18 | 0.9090 | |
| 6 | -2 | 7 | -2 | -16.78 | 278.13 | -65.73 | 105.22 | 0.9063 | |
| 3 | -2 | 3 | -2 | -13.13 | 276.67 | -67.19 | 101.23 | 0.9170 | |
| 0 | -2 | 0 | -2 | -16.48 | 277.60 | -66.29 | 104.88 | 0.9102 | |
| 0 | 1 | 0 | 1 | -19.00 | 277.28 | -66.61 | 107.65 | 0.9125 | |
| 15 | 145 | 20 | 195 | -12.98 | 274.85 | -69.02 | 101.15 | 0.9290 | |
| 0 | 3 | 0 | 3 | -17.25 | 276.42 | -67.44 | 105.73 | 0.9180 | |
| 0 | 2 | 0 | 2 | -17.58 | 276.42 | -67.46 | 106.10 | 0.9181 | |
| 0 | 6 | 0 | 8 | -14.75 | 275.06 | -68.80 | 103.04 | 0.9272 | |
| -13 | -13 | -13 | -13 | -12.92 | 274.21 | -69.66 | 101.12 | 0.9330 | |
| 0 | 3 | 0 | 4 | -14.94 | 274.71 | -69.18 | 103.27 | 0.9295 | |
| 0 | 2 | 0 | 3 | -15.93 | 274.90 | -68.98 | 104.33 | 0.9281 | |
| 1 | 21 | 2 | 29 | -19.90 | 273.15 | -70.73 | 108.61 | 0.9381 | |
| 3 | 34 | 5 | 53 | -14.56 | 271.14 | -72.72 | 103.02 | 0.9500 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
