| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 157 | 1038 | 101 | 658 | 20.66 | 291.10 | -26.53 | 41.84 | 0.6202 | |
|
previous
or next day for the same group /

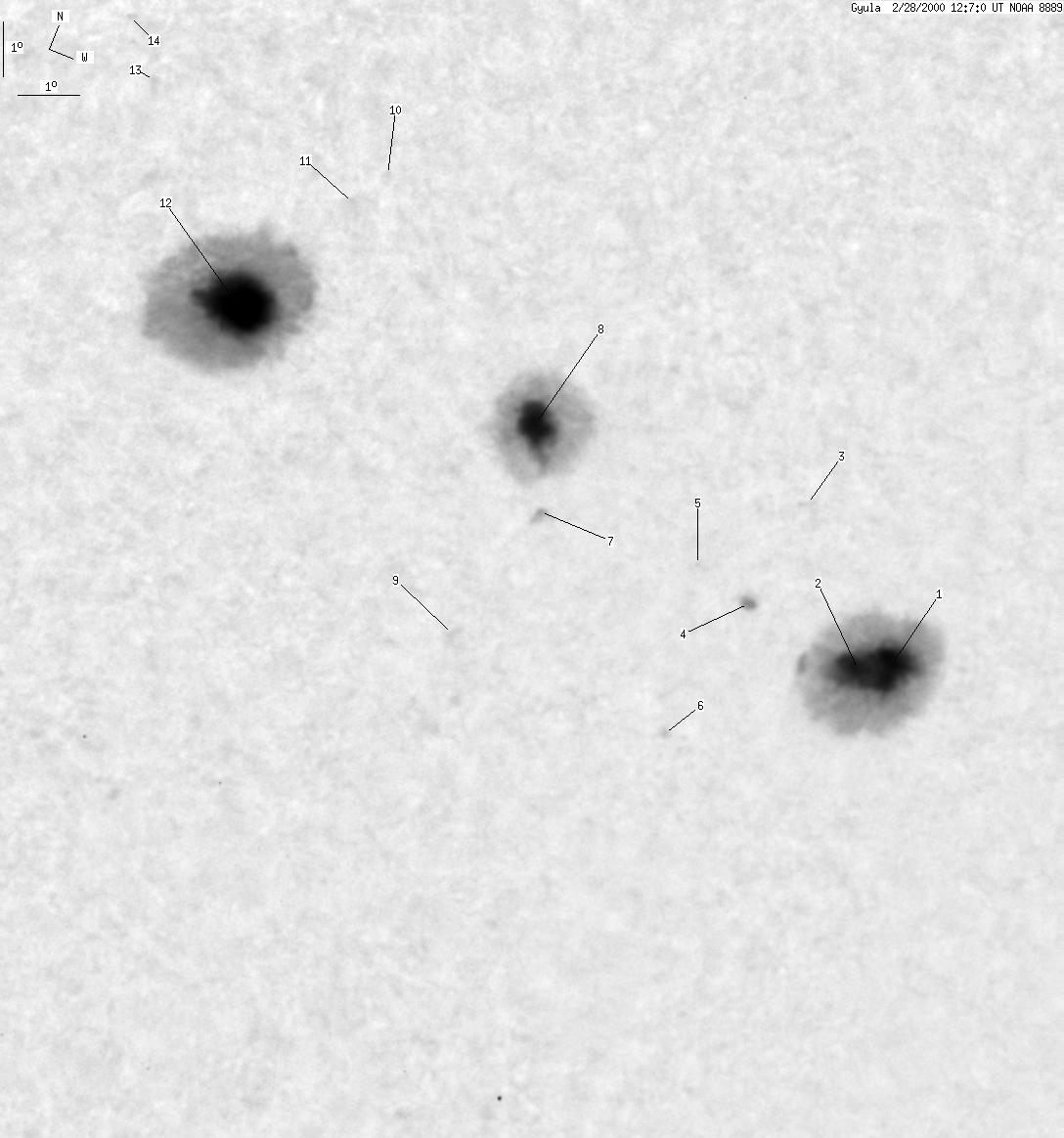

back to the solar disc Gyula 2000-02-28 12:08:41 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 42 | 323 | 24 | 188 | 19.05 | 299.77 | -17.87 | 33.59 | 0.5263 | |
| -1 | -1 | -1 | -1 | 18.90 | 299.26 | -18.36 | 34.49 | 0.5285 | |
| 0 | 2 | 0 | 1 | 21.26 | 297.09 | -20.55 | 34.89 | 0.5741 | |
| 1 | 4 | 1 | 3 | 19.31 | 297.05 | -20.58 | 37.08 | 0.5523 | |
| 0 | 0 | 0 | 0 | 19.69 | 295.81 | -21.81 | 38.24 | 0.5674 | |
| 0 | 1 | 0 | 1 | 16.69 | 296.85 | -20.78 | 40.55 | 0.5249 | |
| 0 | 3 | 0 | 2 | 19.63 | 292.89 | -24.74 | 41.82 | 0.5933 | |
| 27 | 217 | 17 | 136 | 21.01 | 292.02 | -25.60 | 41.17 | 0.6150 | |
| 0 | 1 | 0 | 1 | 17.15 | 292.69 | -24.95 | 45.14 | 0.5709 | |
| 0 | 1 | 0 | 0 | 24.54 | 286.87 | -30.77 | 42.37 | 0.6928 | |
| 0 | 1 | 0 | 1 | 23.85 | 286.62 | -31.02 | 43.34 | 0.6891 | |
| 87 | 482 | 59 | 323 | 21.49 | 285.78 | -31.84 | 46.70 | 0.6768 | |
| 0 | 2 | 0 | 1 | 24.91 | 281.60 | -36.03 | 46.30 | 0.7403 | |
| 0 | 1 | 0 | 1 | 25.91 | 280.21 | -37.41 | 46.25 | 0.7588 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
