| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 2 | 28 | 2 | 21 | 11.45 | 346.42 | 42.45 | 293.54 | 0.7244 | |
|
previous
or next day for the same group /

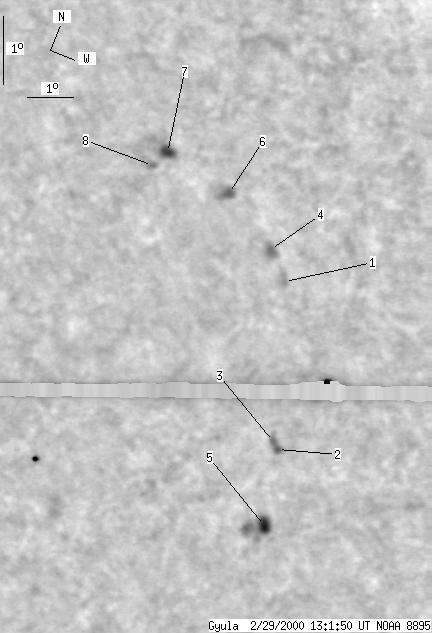

back to the solar disc Gyula 2000-02-29 12:59:45 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 2 | 0 | 1 | 13.12 | 346.73 | 42.76 | 295.48 | 0.7348 | |
| 0 | 1 | 0 | 1 | 10.68 | 347.44 | 43.48 | 292.01 | 0.7317 | |
| 0 | 1 | 0 | 1 | 10.76 | 347.32 | 43.35 | 292.18 | 0.7307 | |
| 0 | 2 | 0 | 2 | 13.47 | 346.27 | 42.31 | 296.16 | 0.7317 | |
| 1 | 14 | 1 | 10 | 9.51 | 347.60 | 43.63 | 290.43 | 0.7286 | |
| 0 | 3 | 0 | 2 | 13.95 | 345.13 | 41.16 | 297.39 | 0.7218 | |
| 1 | 4 | 1 | 3 | 14.07 | 343.68 | 39.71 | 298.38 | 0.7068 | |
| 0 | 1 | 0 | 1 | 13.76 | 343.43 | 39.47 | 298.14 | 0.7025 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
