| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 43 | 252 | 36 | 205 | 18.86 | 234.31 | -46.73 | 59.65 | 0.7990 | |
|
previous
or next day for the same group /

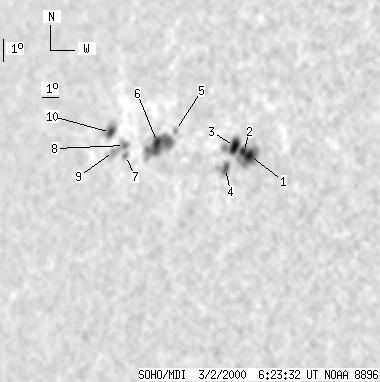

back to the solar disc SOHO MDI 2000-03-02 06:23:32 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 7 | 101 | 6 | 77 | 18.13 | 238.36 | -42.68 | 58.40 | 0.7588 | |
| 5 | -1 | 4 | -1 | 18.33 | 237.96 | -43.08 | 58.38 | 0.7637 | |
| 11 | -1 | 9 | -1 | 18.60 | 237.37 | -43.67 | 58.41 | 0.7706 | |
| 5 | 22 | 4 | 17 | 17.69 | 237.15 | -43.89 | 59.59 | 0.7682 | |
| 0 | 5 | 0 | 4 | 19.64 | 233.54 | -47.50 | 59.23 | 0.8104 | |
| 8 | 71 | 6 | 60 | 19.23 | 232.60 | -48.44 | 60.16 | 0.8168 | |
| 0 | 7 | 0 | 6 | 18.86 | 230.73 | -50.31 | 61.42 | 0.8314 | |
| 0 | 9 | 0 | 8 | 19.31 | 230.48 | -50.56 | 61.04 | 0.8352 | |
| 0 | 13 | 0 | 11 | 19.12 | 229.84 | -51.20 | 61.53 | 0.8398 | |
| 7 | 24 | 7 | 22 | 19.99 | 229.25 | -51.79 | 60.83 | 0.8477 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
