| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 32 | 155 | 22 | 105 | -35.21 | 299.15 | 34.42 | 223.41 | 0.6736 | |
|
previous
or next day for the same group /

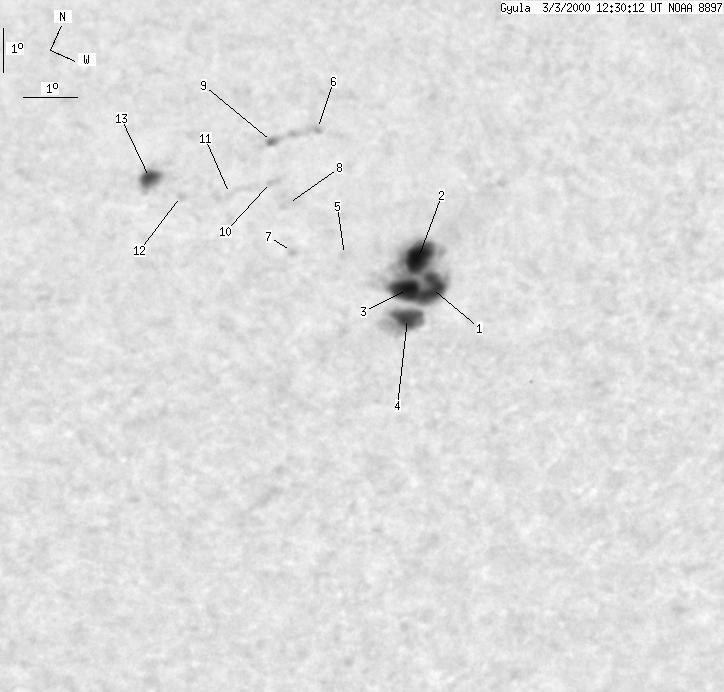

back to the solar disc Gyula 2000-03-03 12:31:21 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 7 | 115 | 5 | 78 | -35.19 | 300.73 | 36.01 | 224.53 | 0.6874 | |
| 11 | -1 | 8 | -1 | -34.88 | 299.99 | 35.27 | 224.45 | 0.6787 | |
| 6 | -1 | 4 | -1 | -35.42 | 300.35 | 35.62 | 224.00 | 0.6856 | |
| 4 | -1 | 3 | -1 | -35.84 | 300.86 | 36.13 | 223.81 | 0.6929 | |
| 0 | 2 | 0 | 1 | -35.44 | 298.76 | 34.03 | 222.93 | 0.6717 | |
| 0 | 12 | 0 | 8 | -33.83 | 296.40 | 31.67 | 223.28 | 0.6385 | |
| 0 | 1 | 0 | 1 | -35.83 | 297.83 | 33.10 | 221.81 | 0.6665 | |
| 0 | 3 | 0 | 2 | -35.13 | 297.03 | 32.29 | 222.09 | 0.6541 | |
| 1 | -6 | 0 | -6 | -34.40 | 295.84 | 31.12 | 222.13 | 0.6380 | |
| 0 | 1 | 0 | 1 | -34.99 | 296.42 | 31.69 | 221.82 | 0.6478 | |
| 0 | 5 | 0 | 3 | -35.43 | 295.90 | 31.16 | 220.88 | 0.6466 | |
| 0 | 1 | 0 | 1 | -35.83 | 295.03 | 30.31 | 219.73 | 0.6426 | |
| 3 | 15 | 2 | 10 | -35.87 | 294.31 | 29.58 | 219.10 | 0.6367 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
