| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 9 | 64 | 4 | 37 | 19.34 | 234.97 | 6.88 | 345.69 | 0.4610 | |
|
previous
or next day for the same group /

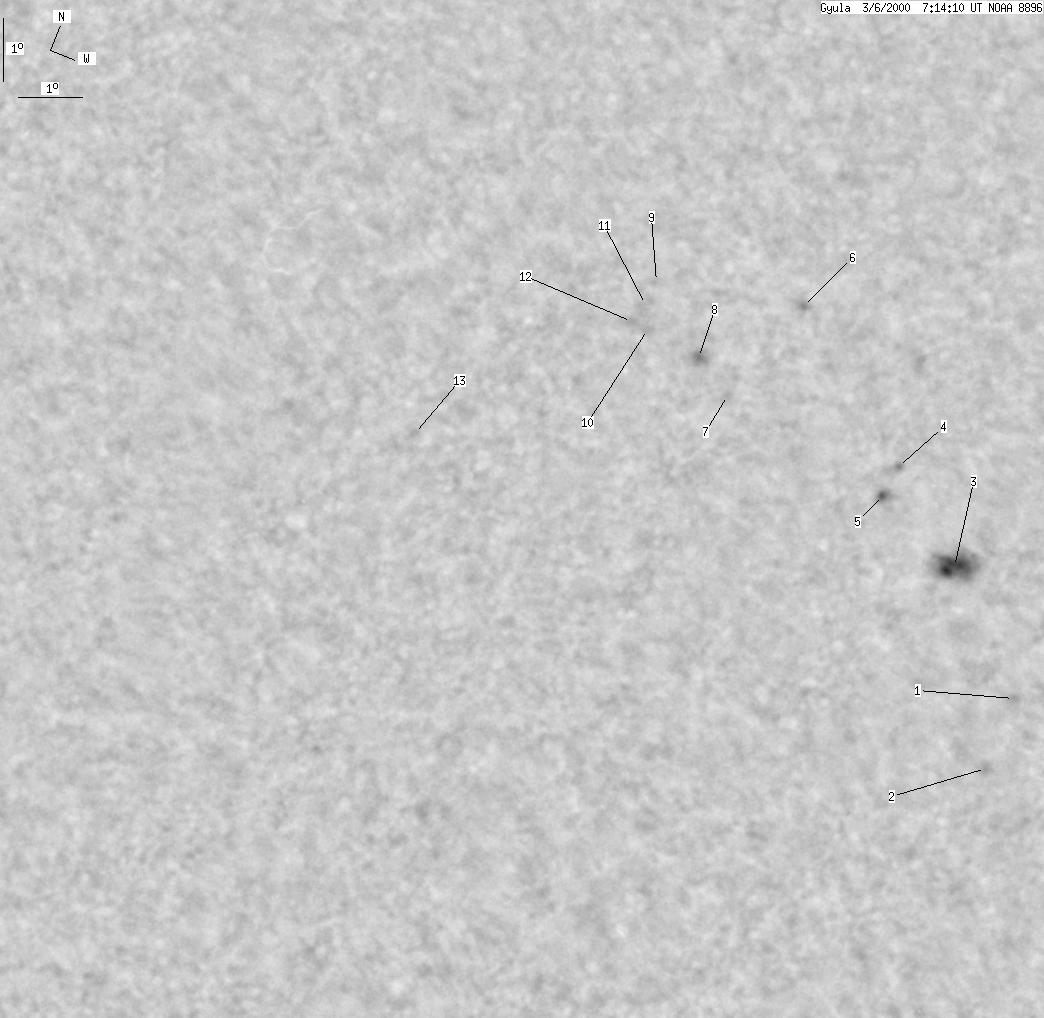

back to the solar disc Gyula 2000-03-06 07:15:19 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 1 | 0 | 1 | 17.27 | 238.21 | 10.11 | 337.92 | 0.4477 | |
| 0 | 1 | 0 | 0 | 16.02 | 238.17 | 10.07 | 336.87 | 0.4294 | |
| 8 | 40 | 4 | 22 | 18.95 | 236.62 | 8.53 | 342.32 | 0.4639 | |
| 0 | 1 | 0 | 1 | 20.05 | 235.20 | 7.09 | 345.78 | 0.4742 | |
| 0 | 5 | 0 | 3 | 19.52 | 235.16 | 7.07 | 345.54 | 0.4662 | |
| 0 | 1 | 0 | 1 | 21.92 | 232.85 | 4.76 | 351.01 | 0.4950 | |
| 0 | 1 | 0 | 1 | 19.99 | 232.18 | 4.08 | 351.68 | 0.4642 | |
| 1 | 4 | 0 | 2 | 20.44 | 231.57 | 3.48 | 353.01 | 0.4700 | |
| 0 | 2 | 0 | 1 | 21.30 | 230.43 | 2.33 | 355.46 | 0.4813 | |
| 0 | 2 | 0 | 1 | 20.48 | 230.59 | 2.49 | 355.01 | 0.4689 | |
| 0 | 4 | 0 | 2 | 20.85 | 230.44 | 2.35 | 355.35 | 0.4744 | |
| 0 | 1 | 0 | 1 | 20.50 | 230.30 | 2.20 | 355.58 | 0.4688 | |
| 0 | 1 | 0 | 1 | 17.34 | 227.79 | -0.31 | 0.71 | 0.4179 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
