| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 36 | 116 | 21 | 65 | -11.92 | 182.27 | -30.45 | 101.25 | 0.5076 | |
|
previous
or next day for the same group /

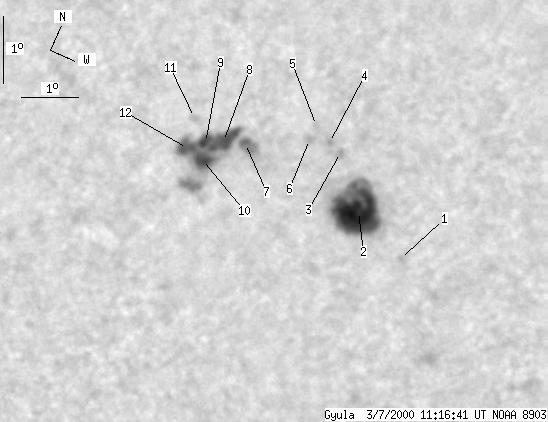

back to the solar disc Gyula 2000-03-07 11:14:23 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 0 | 0 | 0 | -12.53 | 184.82 | -27.88 | 103.11 | 0.4707 | |
| 23 | 48 | 13 | 27 | -12.05 | 183.82 | -28.91 | 101.85 | 0.4851 | |
| 0 | 1 | 0 | 1 | -11.30 | 183.21 | -29.52 | 100.18 | 0.4929 | |
| 0 | 1 | 0 | 0 | -11.23 | 182.98 | -29.74 | 99.99 | 0.4960 | |
| 0 | 1 | 0 | 0 | -11.06 | 182.69 | -30.02 | 99.61 | 0.5000 | |
| 0 | 2 | 0 | 1 | -11.30 | 182.65 | -30.06 | 100.07 | 0.5009 | |
| 1 | 62 | 1 | 36 | -11.66 | 181.62 | -31.10 | 100.60 | 0.5168 | |
| 5 | -7 | 3 | -7 | -11.75 | 181.20 | -31.52 | 100.70 | 0.5230 | |
| 2 | -7 | 1 | -7 | -11.82 | 180.88 | -31.85 | 100.77 | 0.5279 | |
| 3 | -7 | 2 | -7 | -12.10 | 180.92 | -31.81 | 101.31 | 0.5278 | |
| 0 | 1 | 0 | 0 | -11.56 | 180.56 | -32.15 | 100.24 | 0.5319 | |
| 2 | -7 | 1 | -7 | -12.03 | 180.59 | -32.13 | 101.12 | 0.5323 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
