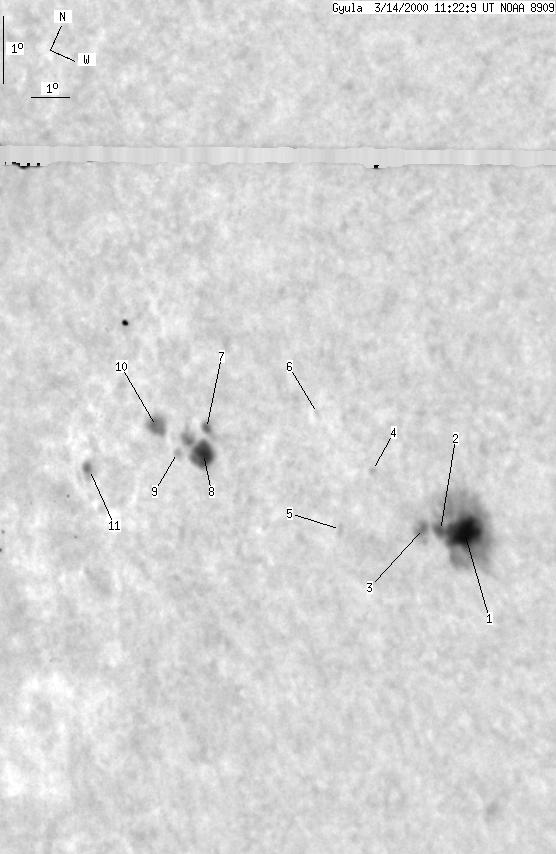

Gyula 2000-03-14 11:22:45 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 22 | 124 | 17 | 93 | -29.46 | 74.83 | -45.57 | 123.64 | 0.7473 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-03-14 11:22:45 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 14 | 85 | 10 | 61 | -29.45 | 77.42 | -42.99 | 124.52 | 0.7229 | |
| 0 | -1 | 0 | -1 | -29.50 | 76.92 | -43.49 | 124.38 | 0.7280 | |
| 0 | -1 | 0 | -1 | -29.58 | 76.40 | -44.01 | 124.27 | 0.7335 | |
| 0 | 1 | 0 | 0 | -28.97 | 75.05 | -45.36 | 122.97 | 0.7443 | |
| 0 | 1 | 0 | 1 | -30.03 | 74.33 | -46.08 | 124.05 | 0.7551 | |
| 0 | 1 | 0 | 1 | -28.36 | 73.55 | -46.86 | 121.68 | 0.7569 | |
| 1 | 4 | 1 | 3 | -29.09 | 70.61 | -49.80 | 121.68 | 0.7866 | |
| 5 | 16 | 4 | 13 | -29.49 | 70.57 | -49.84 | 122.17 | 0.7881 | |
| 0 | 1 | 0 | 1 | -29.57 | 69.84 | -50.57 | 122.05 | 0.7949 | |
| 2 | 10 | 2 | 9 | -29.27 | 69.21 | -51.20 | 121.52 | 0.7997 | |
| 0 | 5 | 0 | 4 | -30.24 | 67.22 | -53.18 | 122.17 | 0.8193 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
