| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 10 | 110 | 7 | 72 | -6.67 | 242.40 | -41.00 | 92.52 | 0.6543 | |
|
previous
or next day for the same group /

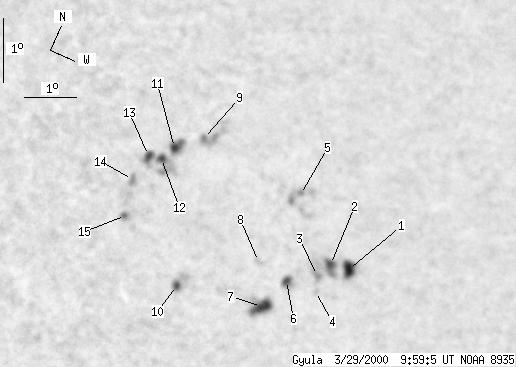

back to the solar disc Gyula 2000-03-29 09:57:33 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 1 | 29 | 1 | 18 | -6.80 | 244.80 | -38.61 | 92.56 | 0.6225 | |
| 1 | -1 | 1 | -1 | -6.87 | 244.45 | -38.96 | 92.69 | 0.6272 | |
| 0 | 1 | 0 | 0 | -7.38 | 244.35 | -39.04 | 93.51 | 0.6281 | |
| 0 | 6 | 0 | 4 | -6.22 | 243.52 | -39.87 | 91.73 | 0.6399 | |
| 0 | 6 | 0 | 4 | -6.00 | 243.45 | -39.95 | 91.38 | 0.6411 | |
| 2 | 5 | 1 | 3 | -7.29 | 243.82 | -39.59 | 93.39 | 0.6355 | |
| 2 | 11 | 1 | 7 | -7.79 | 243.51 | -39.90 | 94.18 | 0.6395 | |
| 0 | 1 | 0 | 1 | -7.25 | 243.08 | -40.31 | 93.35 | 0.6452 | |
| 0 | 7 | 0 | 5 | -5.76 | 241.20 | -42.21 | 91.21 | 0.6709 | |
| 0 | 5 | 0 | 3 | -7.92 | 241.77 | -41.64 | 94.44 | 0.6624 | |
| 2 | 28 | 1 | 19 | -5.97 | 240.69 | -42.71 | 91.57 | 0.6771 | |
| 1 | -11 | 1 | -11 | -6.22 | 240.51 | -42.89 | 91.96 | 0.6793 | |
| 1 | -11 | 1 | -11 | -6.27 | 240.29 | -43.11 | 92.05 | 0.6821 | |
| 0 | 9 | 0 | 6 | -6.77 | 240.10 | -43.30 | 92.80 | 0.6842 | |
| 0 | 2 | 0 | 2 | -7.22 | 240.20 | -43.19 | 93.46 | 0.6826 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
