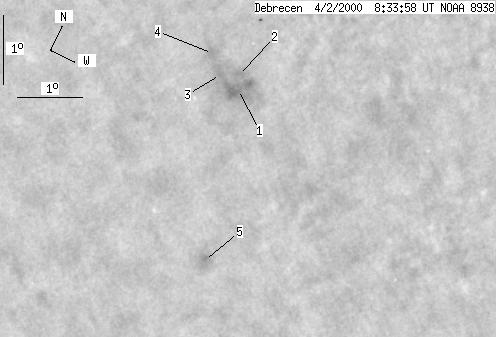

Debrecen 2000-04-02 08:34:55 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 16 | 0 | 8 | -4.49 | 206.41 | -25.00 | 86.80 | 0.4240 | |
|
previous
or next day for the same group /
back to the solar disc Debrecen 2000-04-02 08:34:55 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 8 | 0 | 5 | -4.25 | 206.42 | -24.99 | 86.21 | 0.4240 | |
| 0 | 2 | 0 | 1 | -4.06 | 206.32 | -25.08 | 85.79 | 0.4258 | |
| 0 | 0 | 0 | 0 | -4.15 | 206.05 | -25.35 | 86.08 | 0.4299 | |
| 0 | 3 | 0 | 1 | -3.92 | 205.79 | -25.61 | 85.60 | 0.4344 | |
| 0 | 3 | 0 | 1 | -6.75 | 207.12 | -24.28 | 92.12 | 0.4103 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
