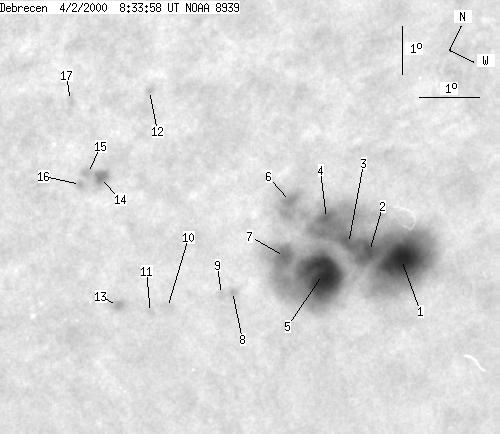

Debrecen 2000-04-02 08:34:55 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 40 | 351 | 28 | 243 | 22.27 | 196.17 | -35.23 | 49.15 | 0.7080 | |
|
previous
or next day for the same group /
back to the solar disc Debrecen 2000-04-02 08:34:55 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 15 | 336 | 11 | 234 | 22.66 | 196.99 | -34.41 | 48.08 | 0.7033 | |
| 1 | -1 | 1 | -1 | 22.58 | 196.40 | -35.01 | 48.63 | 0.7081 | |
| 2 | -1 | 1 | -1 | 22.59 | 195.98 | -35.43 | 48.94 | 0.7121 | |
| 1 | -1 | 1 | -1 | 22.85 | 195.29 | -36.12 | 49.16 | 0.7203 | |
| 17 | -1 | 12 | -1 | 21.90 | 196.01 | -35.39 | 49.71 | 0.7068 | |
| 1 | -1 | 0 | -1 | 22.89 | 194.50 | -36.91 | 49.70 | 0.7277 | |
| 2 | -1 | 1 | -1 | 21.98 | 195.16 | -36.25 | 50.26 | 0.7154 | |
| 0 | 1 | 0 | 1 | 21.10 | 194.83 | -36.58 | 51.52 | 0.7125 | |
| 0 | 1 | 0 | 1 | 21.00 | 194.67 | -36.73 | 51.76 | 0.7133 | |
| 0 | 2 | 0 | 1 | 20.46 | 193.99 | -37.41 | 52.87 | 0.7163 | |
| 0 | 2 | 0 | 1 | 20.28 | 193.79 | -37.61 | 53.23 | 0.7171 | |
| 0 | 1 | 0 | 0 | 23.79 | 190.58 | -40.82 | 51.34 | 0.7684 | |
| 0 | 1 | 0 | 1 | 20.17 | 193.19 | -38.22 | 53.77 | 0.7222 | |
| 1 | 3 | 1 | 2 | 22.08 | 191.10 | -40.31 | 52.93 | 0.7536 | |
| 0 | 2 | 0 | 2 | 22.05 | 190.83 | -40.57 | 53.13 | 0.7559 | |
| 0 | 1 | 0 | 0 | 21.86 | 190.87 | -40.54 | 53.33 | 0.7544 | |
| 0 | 1 | 0 | 0 | 23.14 | 189.42 | -41.99 | 52.78 | 0.7748 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
