| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 33 | 260 | 21 | 157 | 22.01 | 196.98 | 21.89 | 323.45 | 0.5848 | |
|
previous
or next day for the same group /

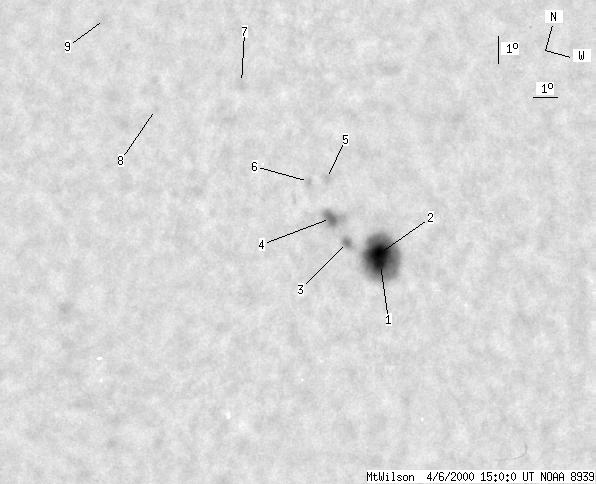

back to the solar disc Mount Wilson 2000-04-06 15:00:00 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 29 | 172 | 18 | 105 | 20.88 | 198.86 | 23.77 | 319.85 | 0.5863 | |
| -1 | -1 | -1 | -1 | 21.27 | 198.76 | 23.67 | 320.42 | 0.5895 | |
| 0 | 9 | 0 | 5 | 21.25 | 197.37 | 22.28 | 322.06 | 0.5769 | |
| 4 | 25 | 3 | 15 | 21.92 | 196.59 | 21.51 | 323.77 | 0.5776 | |
| 0 | 10 | 0 | 6 | 23.35 | 196.21 | 21.13 | 325.77 | 0.5904 | |
| 0 | 2 | 0 | 1 | 23.00 | 195.51 | 20.42 | 326.30 | 0.5810 | |
| 0 | 20 | 0 | 12 | 25.87 | 192.27 | 17.18 | 333.21 | 0.5920 | |
| 0 | 7 | 0 | 4 | 23.75 | 189.08 | 13.99 | 335.96 | 0.5454 | |
| 0 | 15 | 0 | 9 | 26.54 | 186.48 | 11.39 | 341.85 | 0.5692 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
