| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 7 | 40 | 4 | 22 | 7.74 | 166.19 | 25.57 | 298.01 | 0.4864 | |
|
previous
or next day for the same group /

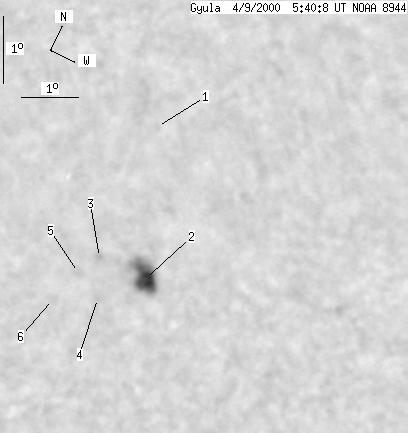

back to the solar disc Gyula 2000-04-09 05:37:44 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 1 | 0 | 1 | 9.94 | 165.61 | 24.98 | 302.51 | 0.4953 | |
| 7 | 31 | 4 | 17 | 7.74 | 166.41 | 25.78 | 297.81 | 0.4892 | |
| 0 | 2 | 0 | 1 | 7.68 | 165.54 | 24.91 | 298.53 | 0.4771 | |
| 0 | 2 | 0 | 1 | 7.10 | 165.78 | 25.16 | 297.21 | 0.4763 | |
| 0 | 2 | 0 | 1 | 7.31 | 165.31 | 24.68 | 298.07 | 0.4714 | |
| 0 | 2 | 0 | 1 | 6.74 | 165.08 | 24.46 | 297.21 | 0.4643 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
