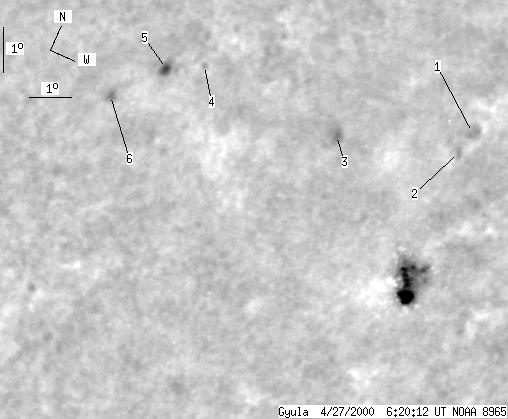

Gyula 2000-04-27 06:14:36 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 17 | 0 | 14 | -16.30 | 317.52 | 54.95 | 253.17 | 0.8216 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-04-27 06:14:36 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 2 | 0 | 2 | -15.09 | 322.28 | 59.71 | 255.14 | 0.8646 | |
| 0 | 2 | 0 | 2 | -15.48 | 322.36 | 59.82 | 254.69 | 0.8658 | |
| 0 | 4 | 0 | 3 | -16.30 | 319.03 | 56.46 | 253.43 | 0.8368 | |
| 0 | 1 | 0 | 1 | -16.31 | 314.99 | 52.46 | 252.91 | 0.7984 | |
| 0 | 5 | 0 | 4 | -16.72 | 314.22 | 51.65 | 252.27 | 0.7908 | |
| 0 | 3 | 0 | 2 | -17.48 | 313.50 | 50.92 | 251.19 | 0.7845 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
