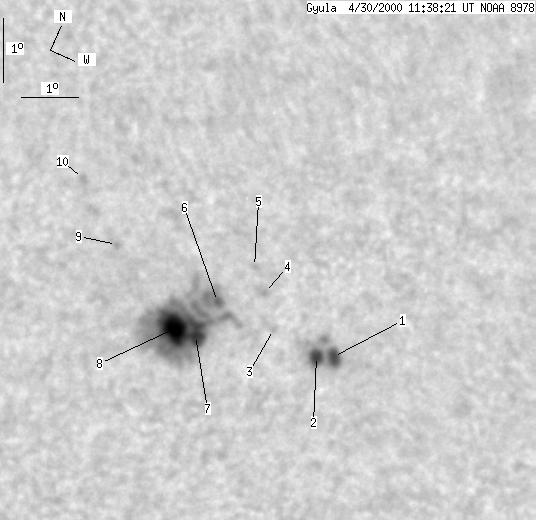

Gyula 2000-04-30 11:36:13 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 12 | 130 | 7 | 72 | 18.06 | 235.96 | 15.97 | 325.20 | 0.4600 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-04-30 11:36:13 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 1 | 20 | 0 | 11 | 18.65 | 238.26 | 18.27 | 322.33 | 0.4879 | |
| 1 | -1 | 1 | -1 | 18.50 | 237.97 | 17.97 | 322.56 | 0.4834 | |
| 0 | 0 | 0 | 0 | 18.63 | 237.13 | 17.16 | 323.99 | 0.4774 | |
| 0 | 1 | 0 | 0 | 19.12 | 236.78 | 16.81 | 325.16 | 0.4803 | |
| 0 | 0 | 0 | 0 | 19.43 | 236.48 | 16.51 | 326.04 | 0.4816 | |
| 0 | 107 | 0 | 60 | 18.64 | 236.08 | 16.10 | 325.69 | 0.4682 | |
| 1 | -6 | 1 | -6 | 17.99 | 235.91 | 15.93 | 325.14 | 0.4585 | |
| 9 | -6 | 5 | -6 | 17.89 | 235.55 | 15.56 | 325.64 | 0.4541 | |
| 0 | 1 | 0 | 0 | 18.75 | 234.15 | 14.17 | 329.12 | 0.4535 | |
| 0 | 1 | 0 | 1 | 19.50 | 233.25 | 13.26 | 331.60 | 0.4565 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
