| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 18 | 120 | 12 | 72 | 18.51 | 235.63 | 25.97 | 312.35 | 0.5638 | |
|
previous
or next day for the same group /

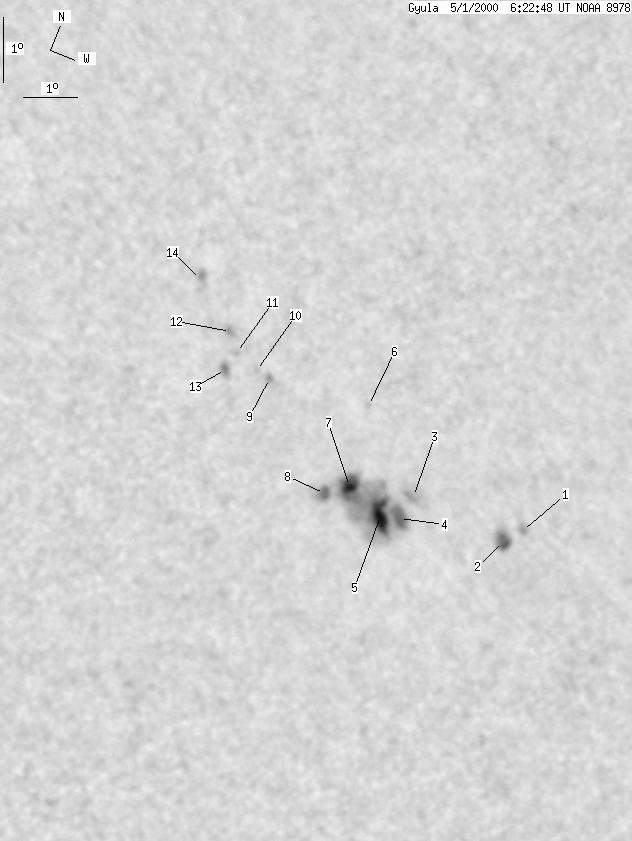

back to the solar disc Gyula 2000-05-01 06:21:35 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 2 | 0 | 1 | 18.96 | 238.61 | 28.95 | 309.93 | 0.5993 | |
| 2 | 10 | 1 | 6 | 18.64 | 238.33 | 28.67 | 309.78 | 0.5937 | |
| 0 | 8 | 0 | 5 | 18.66 | 236.47 | 26.81 | 311.62 | 0.5738 | |
| 3 | 83 | 2 | 50 | 18.24 | 236.35 | 26.70 | 311.15 | 0.5689 | |
| 9 | -4 | 6 | -4 | 18.12 | 235.98 | 26.32 | 311.38 | 0.5637 | |
| 0 | 1 | 0 | 1 | 19.72 | 235.28 | 25.62 | 314.31 | 0.5711 | |
| 3 | -4 | 2 | -4 | 18.35 | 235.24 | 25.58 | 312.48 | 0.5578 | |
| 1 | -4 | 1 | -4 | 18.08 | 234.91 | 25.26 | 312.45 | 0.5519 | |
| 0 | 1 | 0 | 1 | 19.42 | 233.38 | 23.72 | 316.05 | 0.5487 | |
| 0 | 1 | 0 | 0 | 19.44 | 233.14 | 23.49 | 316.35 | 0.5466 | |
| 0 | 1 | 0 | 0 | 19.58 | 232.68 | 23.02 | 317.09 | 0.5432 | |
| 0 | 3 | 0 | 2 | 19.85 | 232.48 | 22.82 | 317.69 | 0.5441 | |
| 0 | 3 | 0 | 2 | 19.24 | 232.57 | 22.91 | 316.78 | 0.5387 | |
| 0 | 7 | 0 | 4 | 20.44 | 231.71 | 22.05 | 319.40 | 0.5427 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
