| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 25 | 143 | 18 | 108 | 18.65 | 235.58 | 44.03 | 299.09 | 0.7557 | |
|
previous
or next day for the same group /

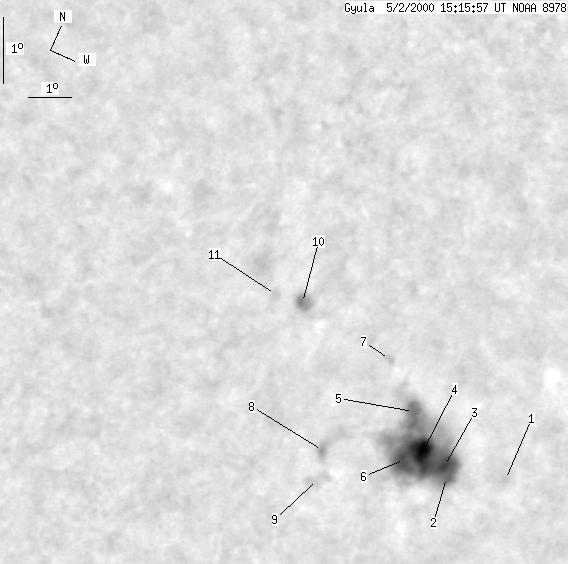

back to the solar disc Gyula 2000-05-02 15:14:35 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 1 | 0 | 1 | 19.01 | 238.08 | 46.54 | 298.32 | 0.7819 | |
| 1 | 111 | 1 | 85 | 18.57 | 236.65 | 45.11 | 298.46 | 0.7661 | |
| 6 | -2 | 5 | -2 | 18.72 | 236.55 | 45.00 | 298.69 | 0.7657 | |
| 10 | -2 | 7 | -2 | 18.72 | 235.93 | 44.38 | 298.99 | 0.7596 | |
| 2 | -2 | 1 | -2 | 19.29 | 235.60 | 44.05 | 299.85 | 0.7589 | |
| 3 | -2 | 2 | -2 | 18.43 | 235.53 | 43.98 | 298.83 | 0.7543 | |
| 0 | 2 | 0 | 1 | 19.85 | 234.80 | 43.25 | 300.93 | 0.7536 | |
| 1 | 16 | 1 | 12 | 17.96 | 233.66 | 42.11 | 299.19 | 0.7330 | |
| 0 | 6 | 0 | 4 | 17.40 | 233.64 | 42.08 | 298.51 | 0.7301 | |
| 2 | 6 | 1 | 4 | 20.01 | 232.68 | 41.13 | 302.27 | 0.7333 | |
| 0 | 1 | 0 | 1 | 19.98 | 231.99 | 40.44 | 302.63 | 0.7262 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
