| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 11 | 37 | 8 | 24 | -16.83 | 168.60 | 40.53 | 248.29 | 0.6715 | |
|
previous
or next day for the same group /

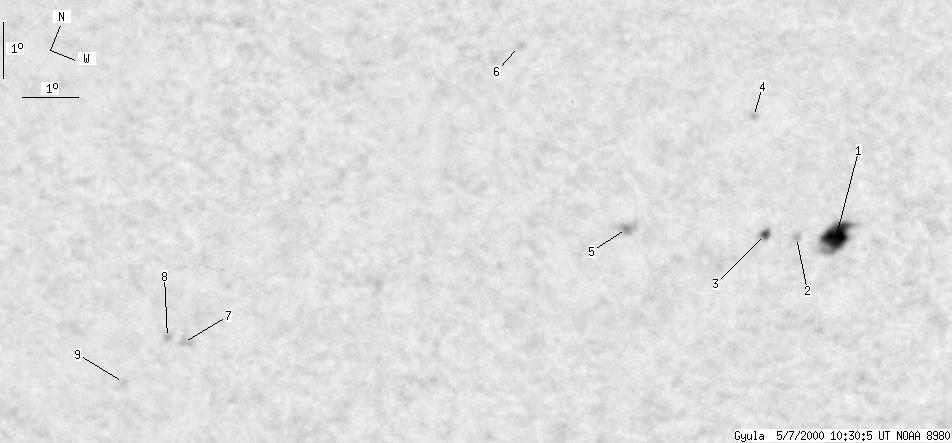

back to the solar disc Gyula 2000-05-07 10:31:19 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 10 | 20 | 7 | 14 | -16.13 | 170.81 | 42.74 | 250.20 | 0.6952 | |
| 0 | 1 | 0 | 1 | -16.43 | 170.11 | 42.03 | 249.56 | 0.6877 | |
| 1 | 3 | 1 | 2 | -16.60 | 169.51 | 41.44 | 249.13 | 0.6811 | |
| 0 | 1 | 0 | 1 | -15.01 | 167.92 | 39.85 | 250.95 | 0.6571 | |
| 0 | 3 | 0 | 2 | -17.46 | 166.98 | 38.91 | 246.97 | 0.6533 | |
| 0 | 4 | 0 | 2 | -15.60 | 163.14 | 35.07 | 248.25 | 0.5980 | |
| 0 | 2 | 0 | 1 | -22.12 | 160.82 | 32.75 | 236.73 | 0.6017 | |
| 0 | 1 | 0 | 0 | -22.16 | 160.50 | 32.43 | 236.46 | 0.5982 | |
| 0 | 2 | 0 | 1 | -23.12 | 160.30 | 32.23 | 234.88 | 0.6019 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
