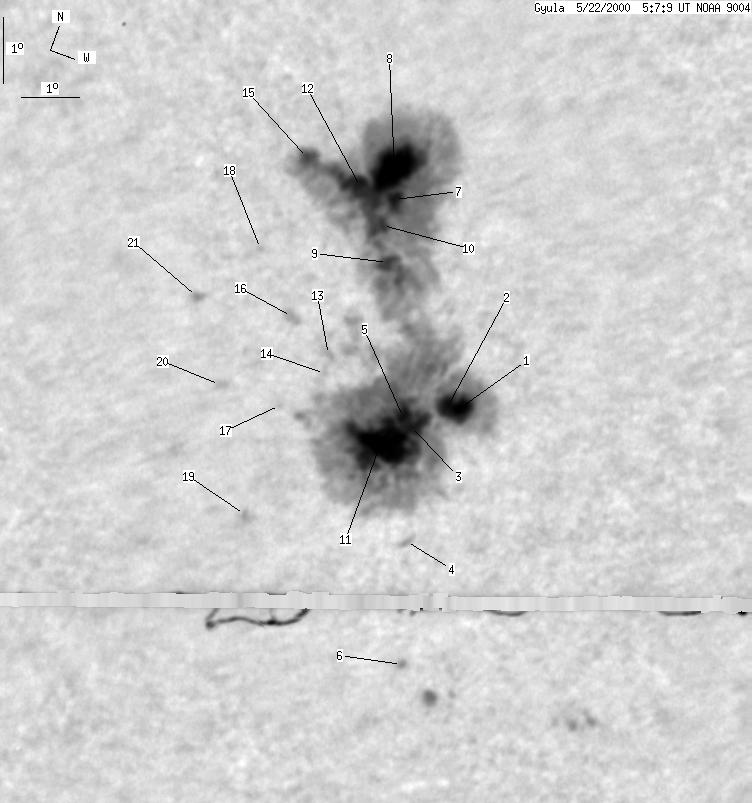

Gyula 2000-05-22 05:08:06 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 135 | 1076 | 75 | 606 | 11.54 | 317.81 | 25.16 | 298.64 | 0.4776 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-05-22 05:08:06 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 9 | 1055 | 5 | 594 | 10.57 | 319.27 | 26.63 | 295.57 | 0.4904 | |
| 5 | -1 | 3 | -1 | 10.55 | 319.13 | 26.48 | 295.64 | 0.4883 | |
| 59 | -1 | 33 | -1 | 9.95 | 318.50 | 25.85 | 295.02 | 0.4759 | |
| 0 | 2 | 0 | 1 | 8.26 | 318.91 | 26.26 | 291.37 | 0.4721 | |
| -3 | -1 | -3 | -1 | 10.18 | 318.41 | 25.77 | 295.53 | 0.4761 | |
| 0 | 1 | 0 | 1 | 6.49 | 319.51 | 26.86 | 287.41 | 0.4723 | |
| 55 | -1 | 31 | -1 | 13.31 | 317.26 | 24.61 | 302.46 | 0.4822 | |
| -7 | -1 | -7 | -1 | 13.75 | 317.15 | 24.50 | 303.36 | 0.4842 | |
| 4 | -1 | 2 | -1 | 12.34 | 317.45 | 24.80 | 300.50 | 0.4775 | |
| 1 | -1 | 0 | -1 | 12.86 | 317.19 | 24.54 | 301.71 | 0.4779 | |
| -3 | -1 | -3 | -1 | 9.64 | 318.17 | 25.53 | 294.67 | 0.4695 | |
| -7 | -1 | -7 | -1 | 13.34 | 316.65 | 24.00 | 303.14 | 0.4745 | |
| 0 | 4 | 0 | 2 | 10.66 | 316.83 | 24.18 | 297.87 | 0.4573 | |
| 0 | 5 | 0 | 3 | 10.35 | 316.85 | 24.20 | 297.25 | 0.4555 | |
| 2 | -1 | 1 | -1 | 13.49 | 315.67 | 23.03 | 304.46 | 0.4633 | |
| 0 | 3 | 0 | 2 | 11.03 | 316.05 | 23.40 | 299.37 | 0.4492 | |
| 0 | 0 | 0 | 0 | 9.64 | 316.25 | 23.60 | 296.35 | 0.4423 | |
| 0 | 1 | 0 | 0 | 11.86 | 315.24 | 22.58 | 301.87 | 0.4444 | |
| 0 | 1 | 0 | 1 | 7.84 | 316.21 | 23.56 | 292.60 | 0.4307 | |
| 0 | 2 | 0 | 1 | 9.62 | 315.17 | 22.52 | 297.37 | 0.4270 | |
| 0 | 2 | 0 | 1 | 10.83 | 314.40 | 21.75 | 300.72 | 0.4252 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
