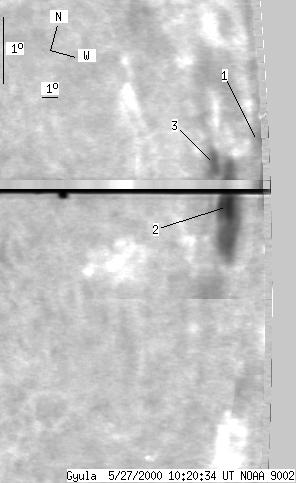

Gyula 2000-05-27 10:18:42 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 5 | 90 | 17 | 294 | 18.35 | 304.11 | 80.48 | 288.76 | 0.9889 | |
|
previous
day for the same group /
back to the solar disc Gyula 2000-05-27 10:18:42 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 7 | 0 | 40 | 19.30 | 308.10 | 84.48 | 289.48 | 0.9968 | |
| 4 | 83 | 13 | 254 | 18.06 | 303.78 | 80.15 | 288.49 | 0.9884 | |
| 1 | -2 | 4 | -2 | 18.64 | 302.49 | 78.86 | 289.18 | 0.9851 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
