| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 5 | 52 | 5 | 57 | -20.48 | 137.26 | -61.34 | 112.62 | 0.8922 | |
|
previous
or next day for the same group /

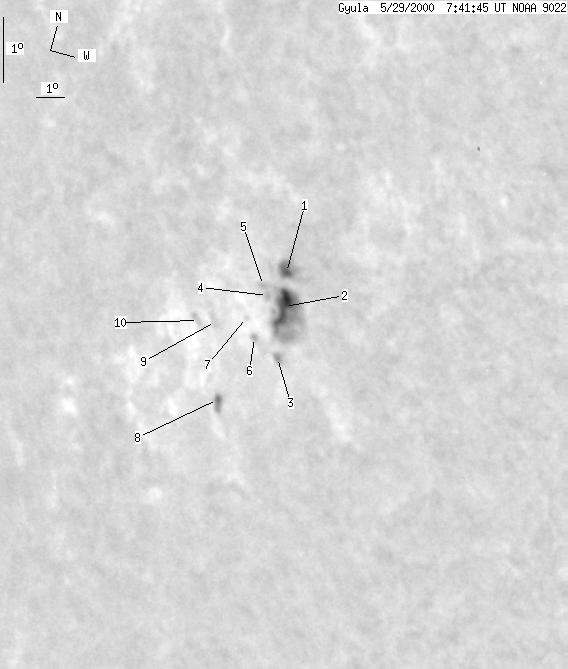

back to the solar disc Gyula 2000-05-29 07:43:50 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 7 | 0 | 8 | -19.87 | 137.90 | -60.69 | 112.05 | 0.8867 | |
| 5 | 33 | 5 | 35 | -20.36 | 137.80 | -60.79 | 112.58 | 0.8882 | |
| 0 | 1 | 0 | 1 | -21.22 | 137.55 | -61.07 | 113.48 | 0.8914 | |
| 0 | 0 | 0 | 0 | -20.24 | 137.20 | -61.41 | 112.33 | 0.8925 | |
| 0 | 1 | 0 | 1 | -20.10 | 137.06 | -61.55 | 112.15 | 0.8934 | |
| 0 | 1 | 0 | 1 | -21.01 | 136.72 | -61.87 | 113.10 | 0.8969 | |
| 0 | 1 | 0 | 1 | -20.68 | 136.42 | -62.20 | 112.68 | 0.8988 | |
| 0 | 2 | 0 | 3 | -22.20 | 135.23 | -63.36 | 114.14 | 0.9087 | |
| 0 | 3 | 0 | 3 | -20.87 | 135.23 | -63.38 | 112.69 | 0.9072 | |
| 0 | 3 | 0 | 4 | -20.93 | 134.56 | -64.05 | 112.65 | 0.9118 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
