Gyula 2000-06-07 15:06:51 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 5 | 23 | 2 | 11 | 15.99 | 80.35 | 4.93 | 344.38 | 0.2901 | |
|
previous
or next day for the same group /

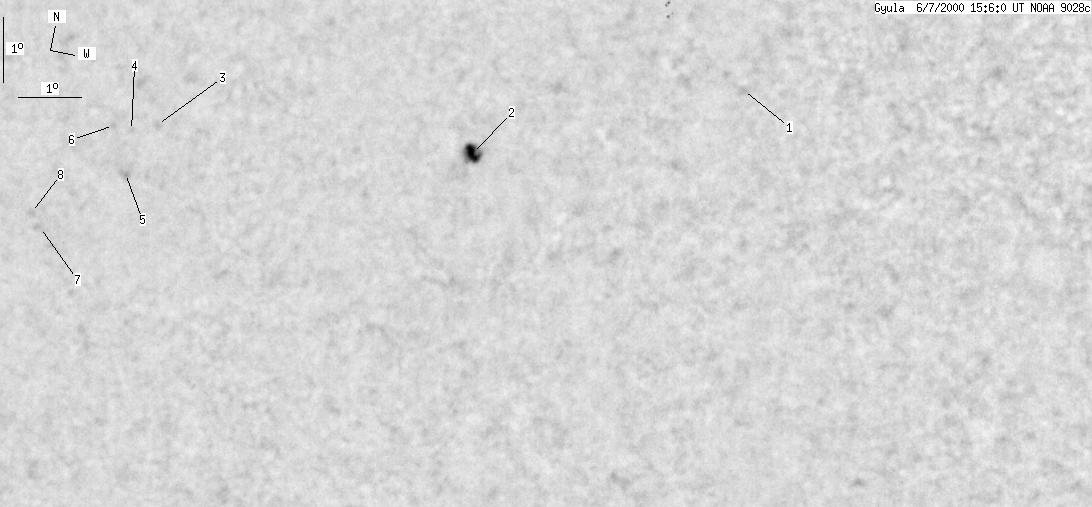

back to the solar disc Gyula 2000-06-07 15:06:51 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 2 | 0 | 1 | 18.43 | 86.54 | 11.11 | 329.73 | 0.3643 | |
| 5 | 11 | 2 | 6 | 16.49 | 82.33 | 6.91 | 337.68 | 0.3050 | |
| 0 | 2 | 0 | 1 | 15.85 | 77.25 | 1.83 | 353.51 | 0.2732 | |
| 0 | 1 | 0 | 0 | 15.65 | 76.85 | 1.42 | 354.87 | 0.2690 | |
| 0 | 3 | 0 | 1 | 15.00 | 76.92 | 1.49 | 354.38 | 0.2583 | |
| 0 | 0 | 0 | 0 | 15.66 | 76.55 | 1.12 | 355.95 | 0.2688 | |
| 0 | 3 | 0 | 1 | 13.82 | 75.76 | 0.33 | 358.62 | 0.2369 | |
| 0 | 1 | 0 | 1 | 14.05 | 75.58 | 0.15 | 359.38 | 0.2408 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
