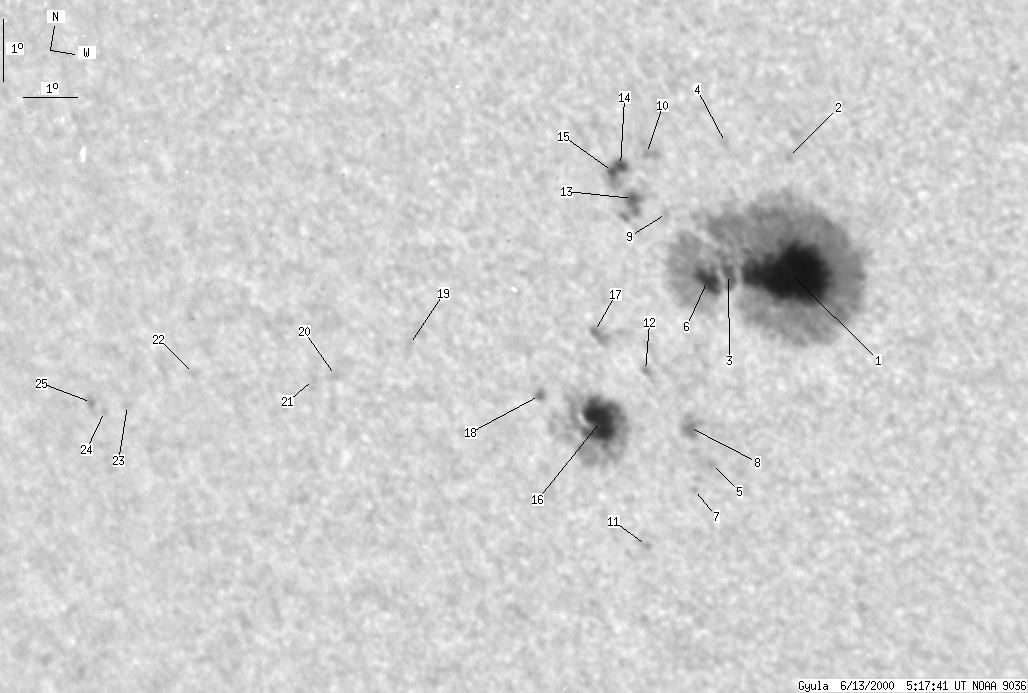

Gyula 2000-06-13 05:19:05 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 97 | 671 | 56 | 379 | -20.86 | 341.91 | -19.49 | 139.91 | 0.4849 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-06-13 05:19:05 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 73 | 500 | 41 | 280 | -20.19 | 343.00 | -18.40 | 140.42 | 0.4668 | |
| 0 | 1 | 0 | 0 | -18.35 | 342.78 | -18.64 | 137.25 | 0.4486 | |
| 3 | -1 | 2 | -1 | -20.40 | 341.92 | -19.47 | 139.18 | 0.4799 | |
| 0 | 2 | 0 | 1 | -18.32 | 341.67 | -19.75 | 135.59 | 0.4603 | |
| 0 | 1 | 0 | 1 | -23.63 | 341.82 | -19.60 | 143.39 | 0.5172 | |
| 5 | -1 | 3 | -1 | -20.58 | 341.56 | -19.84 | 138.93 | 0.4855 | |
| 0 | 1 | 0 | 0 | -24.10 | 341.53 | -19.88 | 143.60 | 0.5252 | |
| 0 | 8 | 0 | 4 | -23.06 | 341.43 | -19.97 | 142.16 | 0.5143 | |
| 0 | 4 | 0 | 2 | -19.66 | 340.73 | -20.68 | 136.41 | 0.4844 | |
| 0 | 3 | 0 | 2 | -18.76 | 340.32 | -21.08 | 134.50 | 0.4795 | |
| 0 | 1 | 0 | 0 | -25.18 | 340.73 | -20.67 | 143.90 | 0.5441 | |
| 0 | 1 | 0 | 1 | -22.30 | 340.53 | -20.88 | 139.94 | 0.5144 | |
| 1 | 10 | 1 | 6 | -19.61 | 340.14 | -21.26 | 135.58 | 0.4900 | |
| 1 | 9 | 1 | 5 | -19.03 | 339.88 | -21.52 | 134.36 | 0.4870 | |
| 1 | -14 | 0 | -14 | -19.16 | 339.72 | -21.70 | 134.34 | 0.4902 | |
| 13 | 112 | 8 | 65 | -23.25 | 339.79 | -21.61 | 140.29 | 0.5317 | |
| 0 | 4 | 0 | 2 | -21.83 | 339.63 | -21.77 | 138.16 | 0.5182 | |
| 0 | 1 | 0 | 1 | -23.08 | 338.61 | -22.80 | 138.61 | 0.5413 | |
| 0 | 1 | 0 | 1 | -22.69 | 336.15 | -25.26 | 135.31 | 0.5620 | |
| 0 | 3 | 0 | 2 | -23.46 | 334.75 | -26.67 | 134.90 | 0.5834 | |
| 0 | 1 | 0 | 1 | -23.60 | 334.32 | -27.09 | 134.66 | 0.5889 | |
| 0 | 3 | 0 | 2 | -23.93 | 331.96 | -29.45 | 132.88 | 0.6156 | |
| 0 | 1 | 0 | 0 | -24.70 | 330.61 | -30.80 | 132.70 | 0.6354 | |
| 0 | 1 | 0 | 1 | -24.88 | 330.13 | -31.28 | 132.54 | 0.6416 | |
| 0 | 3 | 0 | 2 | -24.75 | 329.88 | -31.52 | 132.18 | 0.6429 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
