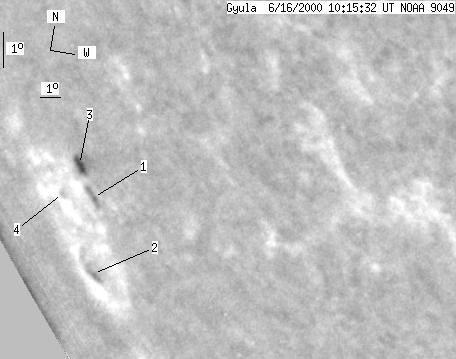

Gyula 2000-06-16 10:16:40 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 10 | 0 | 21 | -37.27 | 246.00 | -72.97 | 128.74 | 0.9761 | |
|
next day for the same group /
back to the solar disc Gyula 2000-06-16 10:16:40 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 3 | 0 | 6 | -36.85 | 247.23 | -71.73 | 128.52 | 0.9723 | |
| 0 | 3 | 0 | 8 | -38.38 | 244.07 | -74.90 | 129.55 | 0.9825 | |
| 0 | 3 | 0 | 6 | -36.26 | 247.51 | -71.45 | 127.98 | 0.9709 | |
| 0 | 1 | 0 | 1 | -36.90 | 244.98 | -73.99 | 128.21 | 0.9791 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
