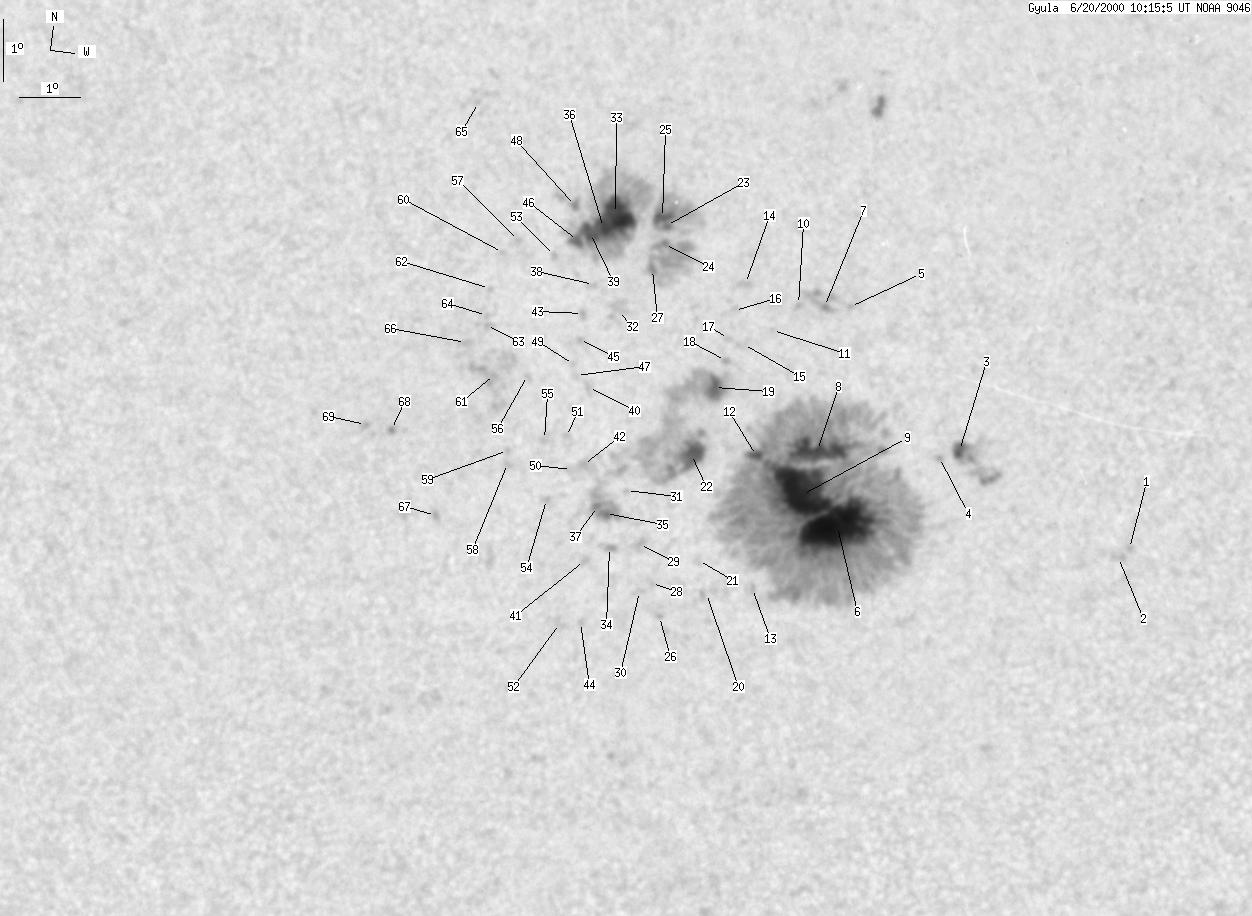

Gyula 2000-06-20 10:13:13 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 170 | 1367 | 92 | 723 | 19.83 | 253.72 | -12.32 | 32.55 | 0.3725 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-06-20 10:13:13 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 2 | 0 | 1 | 18.81 | 260.35 | -5.68 | 17.67 | 0.3102 | |
| 0 | 2 | 0 | 1 | 18.65 | 260.23 | -5.81 | 18.20 | 0.3083 | |
| 3 | 26 | 2 | 14 | 20.00 | 257.29 | -8.75 | 24.46 | 0.3467 | |
| 0 | 1 | 0 | 0 | 19.86 | 256.99 | -9.05 | 25.38 | 0.3467 | |
| 0 | 1 | 0 | 0 | 22.14 | 255.04 | -11.00 | 26.82 | 0.3934 | |
| 103 | 804 | 54 | 425 | 18.51 | 255.52 | -10.51 | 30.86 | 0.3388 | |
| 0 | 10 | 0 | 6 | 22.07 | 254.60 | -11.44 | 27.80 | 0.3958 | |
| 14 | -6 | 7 | -6 | 19.72 | 254.93 | -11.11 | 30.34 | 0.3606 | |
| -6 | -6 | -6 | -6 | 19.00 | 254.88 | -11.16 | 31.58 | 0.3511 | |
| 0 | 1 | 0 | 1 | 22.07 | 254.16 | -11.88 | 28.69 | 0.3990 | |
| 0 | 1 | 0 | 1 | 21.60 | 253.78 | -12.24 | 30.03 | 0.3955 | |
| 2 | -6 | 1 | -6 | 19.54 | 253.96 | -12.08 | 32.72 | 0.3663 | |
| 0 | 1 | 0 | 1 | 17.39 | 254.34 | -11.69 | 35.51 | 0.3343 | |
| 0 | 2 | 0 | 1 | 22.31 | 253.17 | -12.86 | 30.28 | 0.4100 | |
| 0 | 2 | 0 | 1 | 21.31 | 253.35 | -12.67 | 31.30 | 0.3951 | |
| 0 | 2 | 0 | 1 | 21.88 | 253.04 | -12.99 | 31.12 | 0.4053 | |
| 0 | 1 | 0 | 1 | 21.37 | 253.08 | -12.95 | 31.74 | 0.3983 | |
| 0 | 1 | 0 | 0 | 20.97 | 253.11 | -12.92 | 32.26 | 0.3927 | |
| 5 | 145 | 3 | 78 | 20.51 | 253.05 | -12.99 | 33.08 | 0.3873 | |
| 0 | 7 | 0 | 3 | 17.17 | 253.60 | -12.44 | 37.59 | 0.3389 | |
| 0 | 2 | 0 | 1 | 17.73 | 253.35 | -12.68 | 37.06 | 0.3483 | |
| 11 | -19 | 6 | -19 | 19.44 | 252.90 | -13.14 | 35.06 | 0.3747 | |
| 1 | 216 | 1 | 119 | 23.09 | 251.61 | -14.43 | 32.09 | 0.4332 | |
| 1 | -23 | 1 | -23 | 22.77 | 251.64 | -14.38 | 32.44 | 0.4287 | |
| 3 | -23 | 1 | -23 | 23.16 | 251.50 | -14.54 | 32.19 | 0.4350 | |
| 0 | 0 | 0 | 0 | 16.73 | 252.91 | -13.12 | 39.89 | 0.3404 | |
| 1 | -23 | 1 | -23 | 22.33 | 251.54 | -14.49 | 33.23 | 0.4240 | |
| 0 | 2 | 0 | 1 | 17.26 | 252.65 | -13.37 | 39.38 | 0.3495 | |
| 0 | 6 | 0 | 3 | 17.87 | 252.36 | -13.67 | 38.86 | 0.3601 | |
| 0 | 2 | 0 | 1 | 17.11 | 252.48 | -13.54 | 40.02 | 0.3495 | |
| 0 | 1 | 0 | 0 | 18.70 | 251.92 | -14.10 | 38.21 | 0.3746 | |
| 0 | 6 | 0 | 3 | 21.63 | 251.17 | -14.87 | 34.92 | 0.4185 | |
| 23 | -23 | 13 | -23 | 23.13 | 250.73 | -15.31 | 33.55 | 0.4412 | |
| 0 | 4 | 0 | 2 | 17.74 | 251.89 | -14.15 | 40.05 | 0.3635 | |
| 1 | 25 | 1 | 13 | 18.28 | 251.68 | -14.35 | 39.43 | 0.3721 | |
| -33 | -23 | -33 | -23 | 22.88 | 250.57 | -15.47 | 34.15 | 0.4396 | |
| 0 | -35 | 0 | -35 | 18.35 | 251.55 | -14.48 | 39.56 | 0.3743 | |
| 0 | 1 | 0 | 0 | 21.96 | 250.60 | -15.42 | 35.39 | 0.4276 | |
| -33 | -23 | -33 | -23 | 22.74 | 250.42 | -15.62 | 34.61 | 0.4391 | |
| 0 | 4 | 0 | 2 | 20.25 | 250.93 | -15.10 | 37.45 | 0.4036 | |
| 0 | 1 | 0 | 1 | 17.49 | 251.48 | -14.55 | 41.28 | 0.3647 | |
| 0 | 4 | 0 | 2 | 19.01 | 251.13 | -14.90 | 39.17 | 0.3865 | |
| 0 | 1 | 0 | 1 | 21.42 | 250.59 | -15.45 | 36.23 | 0.4213 | |
| 0 | 1 | 0 | 0 | 16.49 | 251.62 | -14.40 | 42.96 | 0.3515 | |
| 0 | 1 | 0 | 0 | 21.03 | 250.62 | -15.42 | 36.77 | 0.4162 | |
| 2 | -23 | 1 | -23 | 22.62 | 250.18 | -15.86 | 35.16 | 0.4398 | |
| 0 | 1 | 0 | 0 | 20.44 | 250.67 | -15.35 | 37.60 | 0.4083 | |
| 0 | 6 | 0 | 3 | 23.17 | 249.99 | -16.05 | 34.69 | 0.4483 | |
| 0 | 1 | 0 | 0 | 20.61 | 250.58 | -15.44 | 37.48 | 0.4113 | |
| 0 | 3 | 0 | 1 | 18.91 | 250.94 | -15.08 | 39.67 | 0.3873 | |
| 0 | 1 | 0 | 0 | 19.46 | 250.79 | -15.24 | 39.01 | 0.3955 | |
| 0 | 2 | 0 | 1 | 16.43 | 251.28 | -14.74 | 43.73 | 0.3546 | |
| 0 | 1 | 0 | 1 | 22.32 | 249.86 | -16.18 | 36.13 | 0.4391 | |
| 0 | 1 | 0 | 0 | 18.37 | 250.68 | -15.36 | 41.13 | 0.3838 | |
| 0 | 1 | 0 | 1 | 19.34 | 250.40 | -15.64 | 39.92 | 0.3981 | |
| 0 | 1 | 0 | 0 | 20.29 | 249.92 | -16.12 | 39.16 | 0.4142 | |
| 0 | 1 | 0 | 1 | 22.48 | 249.14 | -16.89 | 37.02 | 0.4476 | |
| 0 | 1 | 0 | 0 | 18.87 | 249.85 | -16.17 | 41.66 | 0.3982 | |
| 0 | 1 | 0 | 0 | 19.08 | 249.80 | -16.22 | 41.37 | 0.4011 | |
| 0 | 1 | 0 | 0 | 22.24 | 248.93 | -17.10 | 37.71 | 0.4468 | |
| 0 | 36 | 0 | 20 | 20.27 | 249.29 | -16.73 | 40.20 | 0.4202 | |
| 0 | 0 | 0 | 0 | 21.66 | 248.85 | -17.17 | 38.70 | 0.4407 | |
| 0 | 2 | 0 | 1 | 21.05 | 248.95 | -17.07 | 39.48 | 0.4326 | |
| 0 | 1 | 0 | 0 | 21.21 | 248.91 | -17.11 | 39.29 | 0.4349 | |
| 0 | 16 | 0 | 9 | 24.67 | 247.82 | -18.21 | 35.95 | 0.4857 | |
| 0 | 1 | 0 | 1 | 20.69 | 248.69 | -17.34 | 40.48 | 0.4312 | |
| 0 | 1 | 0 | 0 | 17.84 | 248.87 | -17.17 | 45.19 | 0.3978 | |
| 0 | 1 | 0 | 0 | 19.14 | 247.79 | -18.25 | 44.49 | 0.4239 | |
| 0 | 1 | 0 | 0 | 19.15 | 247.34 | -18.70 | 45.14 | 0.4291 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
