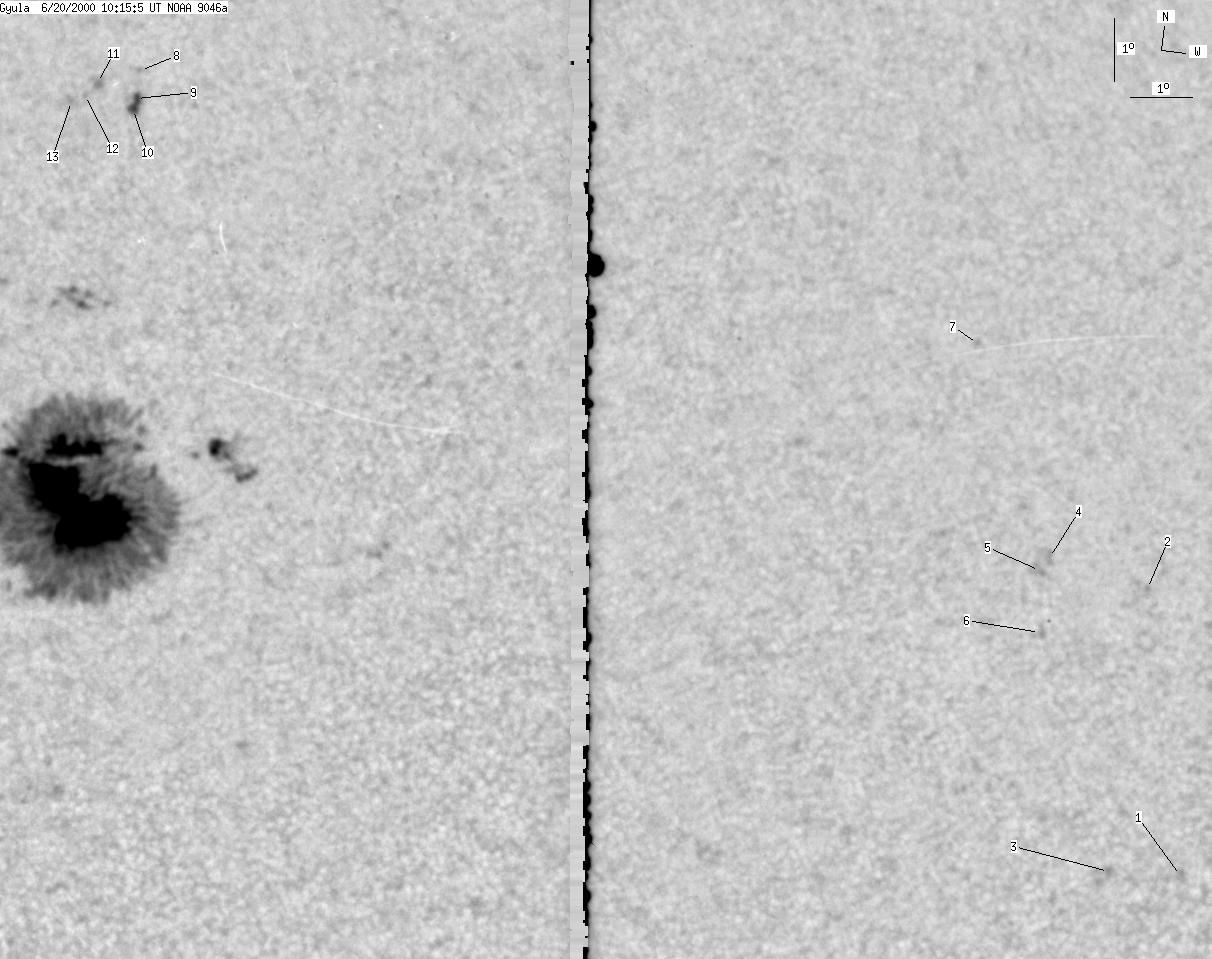

Gyula 2000-06-20 10:13:13 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 5 | 49 | 1 | 27 | 20.63 | 266.10 | 0.08 | 359.77 | 0.3244 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-06-20 10:13:13 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 4 | 0 | 2 | 15.21 | 273.78 | 7.76 | 330.87 | 0.2688 | |
| 1 | 8 | 0 | 4 | 19.72 | 272.83 | 6.81 | 340.18 | 0.3304 | |
| 1 | 9 | 0 | 5 | 15.13 | 272.61 | 6.59 | 334.50 | 0.2586 | |
| 0 | 2 | 0 | 1 | 20.02 | 271.17 | 5.14 | 345.00 | 0.3269 | |
| 0 | 5 | 0 | 3 | 19.79 | 271.02 | 5.00 | 345.21 | 0.3226 | |
| 0 | 4 | 0 | 2 | 18.79 | 271.12 | 5.10 | 344.03 | 0.3071 | |
| 0 | 2 | 0 | 1 | 23.37 | 269.62 | 3.60 | 351.13 | 0.3754 | |
| 0 | 1 | 0 | 1 | 26.11 | 254.72 | -11.30 | 23.04 | 0.4514 | |
| 3 | 7 | 1 | 4 | 25.63 | 254.76 | -11.26 | 23.44 | 0.4444 | |
| -9 | -9 | -9 | -9 | 25.44 | 254.75 | -11.27 | 23.65 | 0.4418 | |
| 0 | 4 | 0 | 2 | 25.81 | 254.03 | -11.99 | 24.58 | 0.4516 | |
| 0 | 0 | 0 | 0 | 25.56 | 253.87 | -12.15 | 25.11 | 0.4492 | |
| 0 | 3 | 0 | 2 | 25.43 | 253.66 | -12.37 | 25.63 | 0.4489 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
