Gyula 2000-06-21 10:01:17 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 151 | 1160 | 79 | 598 | 19.62 | 254.03 | 1.12 | 356.56 | 0.3062 | |
|
previous
or next day for the same group /

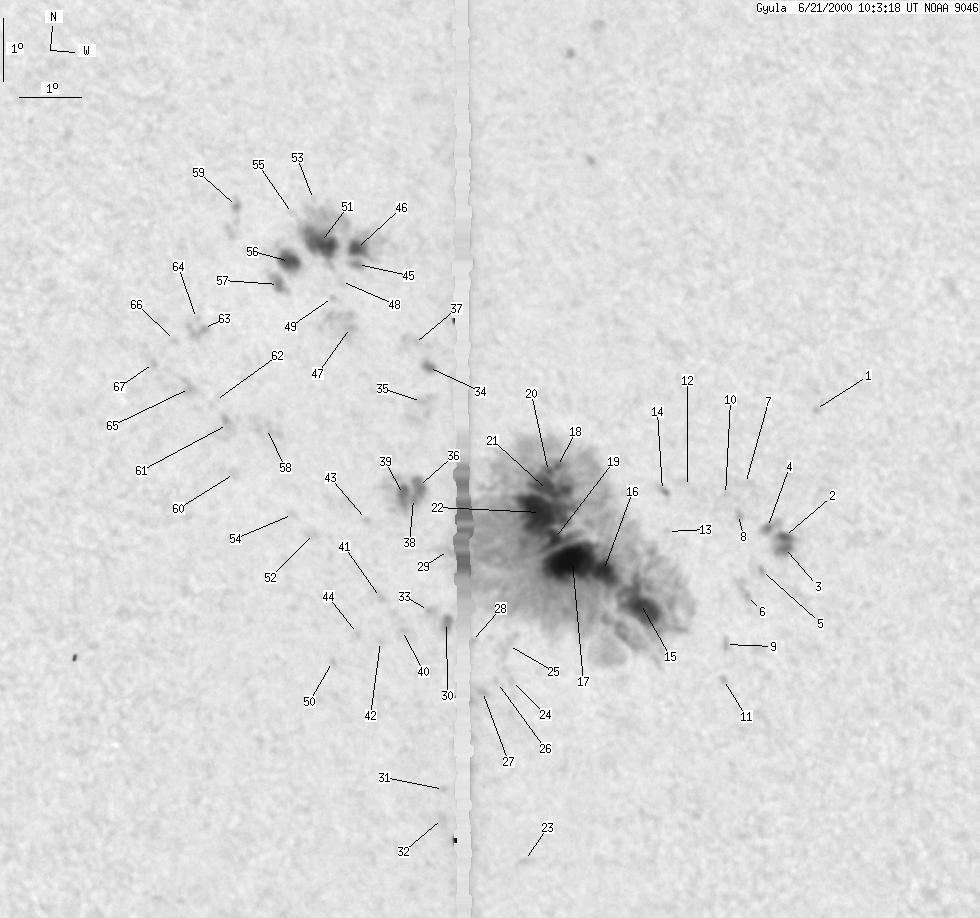

back to the solar disc Gyula 2000-06-21 10:01:17 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 1 | 0 | 0 | 21.51 | 258.92 | 6.03 | 343.85 | 0.3526 | |
| 1 | 18 | 1 | 9 | 19.35 | 258.51 | 5.59 | 343.02 | 0.3164 | |
| 2 | -2 | 1 | -2 | 19.21 | 258.54 | 5.64 | 342.75 | 0.3144 | |
| 1 | -2 | 0 | -2 | 19.51 | 258.28 | 5.38 | 343.78 | 0.3180 | |
| 0 | 1 | 0 | 0 | 18.82 | 258.17 | 5.26 | 343.47 | 0.3064 | |
| 0 | 4 | 0 | 2 | 18.37 | 257.99 | 5.08 | 343.56 | 0.2984 | |
| 0 | 3 | 0 | 2 | 20.18 | 257.86 | 4.96 | 345.55 | 0.3268 | |
| 0 | 1 | 0 | 1 | 19.66 | 257.76 | 4.86 | 345.42 | 0.3181 | |
| 0 | 1 | 0 | 1 | 17.52 | 257.66 | 4.75 | 343.74 | 0.2833 | |
| 0 | 2 | 0 | 1 | 19.97 | 257.54 | 4.65 | 346.26 | 0.3221 | |
| 0 | 1 | 0 | 0 | 16.99 | 257.78 | 4.88 | 342.73 | 0.2754 | |
| 0 | 4 | 0 | 2 | 20.03 | 256.90 | 4.01 | 348.12 | 0.3207 | |
| 0 | 0 | 0 | 0 | 19.26 | 256.64 | 3.75 | 348.36 | 0.3075 | |
| 0 | 4 | 0 | 2 | 19.92 | 256.42 | 3.51 | 349.51 | 0.3174 | |
| 15 | 816 | 8 | 423 | 18.01 | 256.26 | 3.35 | 348.73 | 0.2856 | |
| 100 | -15 | 52 | -15 | 18.50 | 255.60 | 2.69 | 351.20 | 0.2918 | |
| -16 | -15 | -16 | -15 | 18.61 | 255.04 | 2.13 | 353.04 | 0.2923 | |
| 1 | -15 | 0 | -15 | 20.10 | 254.65 | 1.74 | 354.80 | 0.3164 | |
| -16 | -15 | -16 | -15 | 18.95 | 254.68 | 1.77 | 354.34 | 0.2973 | |
| 0 | -15 | 0 | -15 | 20.02 | 254.53 | 1.61 | 355.16 | 0.3148 | |
| -16 | -15 | -16 | -15 | 19.70 | 254.52 | 1.60 | 355.10 | 0.3096 | |
| -16 | -15 | -16 | -15 | 19.30 | 254.41 | 1.50 | 355.30 | 0.3028 | |
| 0 | 1 | 0 | 1 | 13.77 | 254.87 | 1.96 | 350.87 | 0.2107 | |
| 0 | 1 | 0 | 1 | 16.57 | 254.36 | 1.47 | 354.49 | 0.2570 | |
| 0 | 4 | 0 | 2 | 17.14 | 254.25 | 1.36 | 355.10 | 0.2664 | |
| 0 | 2 | 0 | 1 | 16.53 | 254.14 | 1.25 | 355.31 | 0.2560 | |
| 0 | 6 | 0 | 3 | 16.35 | 253.85 | 0.94 | 356.42 | 0.2525 | |
| 0 | 1 | 0 | 0 | 17.14 | 253.65 | 0.76 | 357.27 | 0.2657 | |
| 0 | 2 | 0 | 1 | 18.55 | 253.11 | 0.22 | 359.29 | 0.2892 | |
| 1 | 4 | 1 | 2 | 17.42 | 253.15 | 0.23 | 359.17 | 0.2702 | |
| 0 | 1 | 0 | 0 | 14.69 | 253.35 | 0.44 | 358.09 | 0.2240 | |
| 0 | 1 | 0 | 0 | 14.23 | 253.40 | 0.49 | 357.80 | 0.2161 | |
| 0 | 2 | 0 | 1 | 17.55 | 252.86 | -0.04 | 0.15 | 0.2724 | |
| 2 | 6 | 1 | 3 | 21.48 | 252.36 | -0.55 | 1.52 | 0.3380 | |
| 1 | 15 | 0 | 8 | 20.88 | 252.31 | -0.60 | 1.72 | 0.3281 | |
| 3 | 27 | 2 | 14 | 19.47 | 252.46 | -0.45 | 1.39 | 0.3046 | |
| 0 | 8 | 0 | 4 | 21.85 | 252.14 | -0.76 | 2.06 | 0.3443 | |
| 0 | -36 | 0 | -36 | 19.32 | 252.44 | -0.45 | 1.41 | 0.3022 | |
| 3 | -36 | 2 | -36 | 19.35 | 252.24 | -0.68 | 2.12 | 0.3028 | |
| 0 | 1 | 0 | 0 | 17.19 | 252.52 | -0.38 | 1.35 | 0.2662 | |
| 0 | 2 | 0 | 1 | 17.67 | 252.10 | -0.79 | 2.76 | 0.2747 | |
| 0 | 1 | 0 | 0 | 16.97 | 252.19 | -0.71 | 2.59 | 0.2628 | |
| 0 | 1 | 0 | 0 | 18.90 | 251.72 | -1.17 | 3.77 | 0.2956 | |
| 0 | 1 | 0 | 0 | 17.05 | 251.80 | -1.09 | 3.97 | 0.2646 | |
| 1 | 136 | 1 | 72 | 23.03 | 251.04 | -1.85 | 4.70 | 0.3646 | |
| 2 | -45 | 1 | -45 | 23.27 | 250.93 | -1.98 | 4.96 | 0.3686 | |
| 1 | 24 | 0 | 13 | 21.97 | 251.03 | -1.88 | 5.04 | 0.3473 | |
| 0 | 2 | 0 | 1 | 22.72 | 250.81 | -2.08 | 5.36 | 0.3599 | |
| 0 | 1 | 0 | 0 | 22.44 | 250.70 | -2.20 | 5.74 | 0.3555 | |
| 0 | 1 | 0 | 0 | 16.53 | 251.40 | -1.51 | 5.66 | 0.2563 | |
| 11 | -45 | 6 | -45 | 23.27 | 250.31 | -2.60 | 6.50 | 0.3697 | |
| 0 | 2 | 0 | 1 | 18.57 | 250.89 | -2.00 | 6.56 | 0.2914 | |
| 0 | 1 | 0 | 0 | 23.94 | 250.07 | -2.84 | 6.86 | 0.3810 | |
| 0 | 2 | 0 | 1 | 18.84 | 250.51 | -2.38 | 7.66 | 0.2966 | |
| 0 | 1 | 0 | 1 | 23.75 | 249.84 | -3.05 | 7.44 | 0.3783 | |
| 5 | -45 | 3 | -45 | 22.91 | 249.87 | -3.03 | 7.71 | 0.3648 | |
| 1 | -45 | 0 | -45 | 22.55 | 249.71 | -3.21 | 8.30 | 0.3593 | |
| 0 | 11 | 0 | 6 | 20.17 | 249.88 | -3.03 | 8.94 | 0.3202 | |
| 0 | 13 | 0 | 7 | 23.75 | 248.81 | -4.10 | 9.95 | 0.3808 | |
| 0 | 2 | 0 | 1 | 19.39 | 249.48 | -3.42 | 10.55 | 0.3084 | |
| 0 | 7 | 0 | 3 | 20.17 | 249.14 | -3.77 | 11.10 | 0.3223 | |
| 0 | 4 | 0 | 2 | 20.53 | 249.00 | -3.89 | 11.21 | 0.3285 | |
| 0 | 4 | 0 | 2 | 21.65 | 248.59 | -4.32 | 11.66 | 0.3479 | |
| 0 | 1 | 0 | 0 | 21.73 | 248.35 | -4.56 | 12.24 | 0.3502 | |
| 0 | 3 | 0 | 2 | 20.64 | 248.46 | -4.45 | 12.67 | 0.3322 | |
| 0 | 1 | 0 | 0 | 21.41 | 248.14 | -4.77 | 12.98 | 0.3458 | |
| 0 | 1 | 0 | 1 | 21.01 | 247.79 | -5.12 | 14.23 | 0.3407 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
