Gyula 2000-06-30 05:11:15 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 13 | 0 | 8 | -14.81 | 141.89 | 5.43 | 196.27 | 0.3207 | |
|
previous
or next day for the same group /

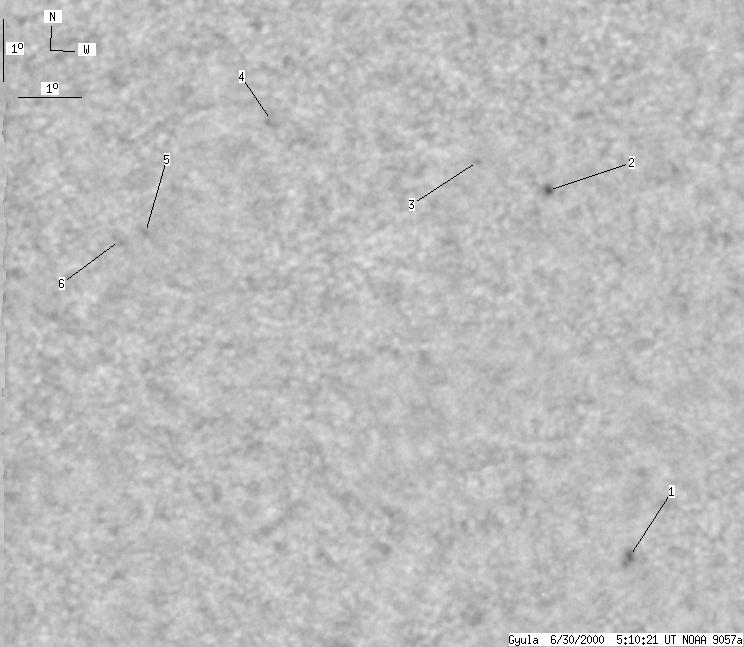

back to the solar disc Gyula 2000-06-30 05:11:15 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 1 | 0 | 1 | -19.96 | 147.42 | 10.97 | 204.85 | 0.4276 | |
| 0 | 2 | 0 | 1 | -13.87 | 145.49 | 9.04 | 208.02 | 0.3261 | |
| 0 | 2 | 0 | 1 | -13.48 | 144.24 | 7.79 | 205.18 | 0.3111 | |
| 0 | 4 | 0 | 2 | -13.02 | 140.90 | 4.44 | 195.45 | 0.2844 | |
| 0 | 1 | 0 | 1 | -14.94 | 138.97 | 2.51 | 187.90 | 0.3093 | |
| 0 | 3 | 0 | 2 | -15.10 | 138.59 | 2.13 | 186.65 | 0.3112 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
