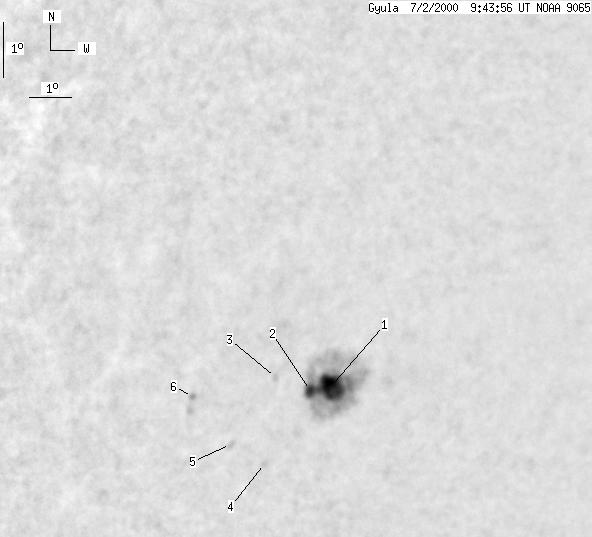

Gyula 2000-07-02 09:42:05 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 11 | 81 | 8 | 61 | 21.98 | 62.19 | -45.30 | 62.79 | 0.7434 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-07-02 09:42:05 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 9 | 78 | 6 | 58 | 22.03 | 62.41 | -45.08 | 62.65 | 0.7413 | |
| 2 | -1 | 2 | -1 | 21.94 | 61.97 | -45.52 | 62.92 | 0.7456 | |
| 0 | 1 | 0 | 1 | 22.10 | 61.03 | -46.44 | 63.04 | 0.7555 | |
| 0 | 1 | 0 | 1 | 20.92 | 60.50 | -46.97 | 64.72 | 0.7574 | |
| 0 | 0 | 0 | 0 | 21.70 | 59.21 | -48.27 | 64.13 | 0.7728 | |
| 0 | 1 | 0 | 1 | 21.46 | 59.27 | -48.21 | 64.42 | 0.7716 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
