| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 2 | 39 | 1 | 21 | -13.85 | 37.04 | -5.78 | 164.17 | 0.3258 | |
|
previous
or next day for the same group /

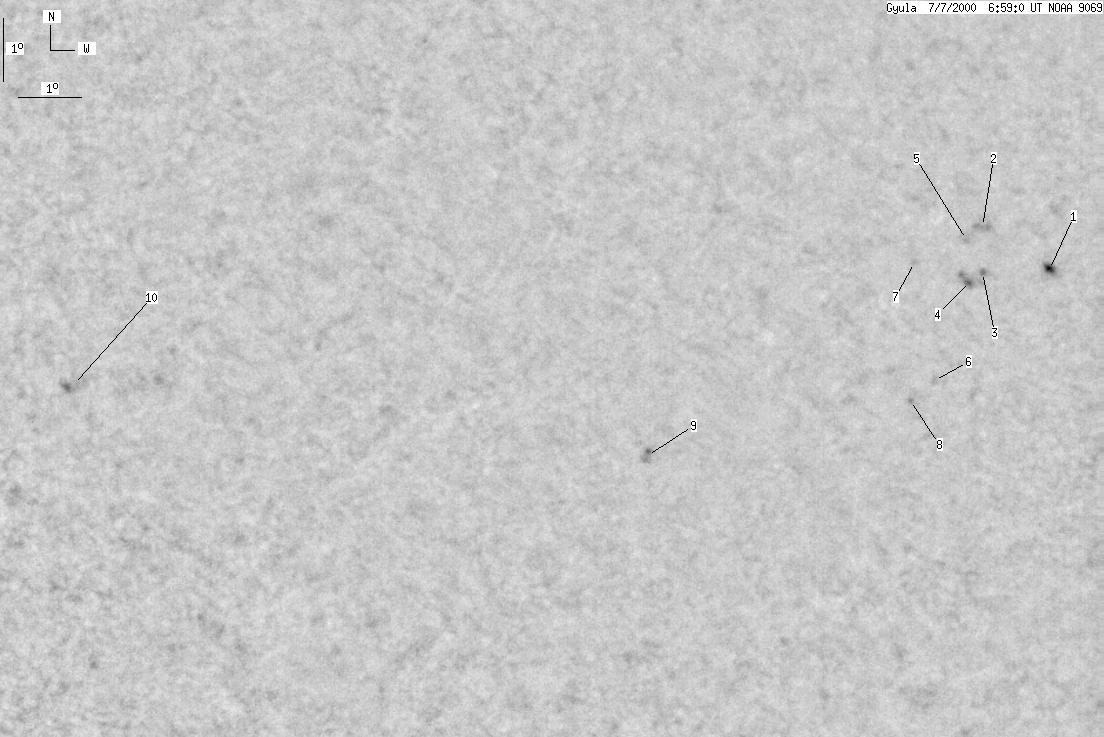

back to the solar disc Gyula 2000-07-07 06:56:56 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 2 | 11 | 1 | 6 | -13.06 | 41.13 | -1.70 | 174.25 | 0.2891 | |
| 0 | 2 | 0 | 1 | -12.40 | 40.10 | -2.72 | 170.44 | 0.2804 | |
| 0 | 11 | 0 | 6 | -13.13 | 40.08 | -2.75 | 170.78 | 0.2925 | |
| 0 | -3 | 0 | -3 | -13.27 | 39.84 | -2.99 | 170.08 | 0.2956 | |
| 0 | 1 | 0 | 1 | -12.62 | 39.89 | -2.92 | 169.89 | 0.2847 | |
| 0 | 1 | 0 | 1 | -14.91 | 39.35 | -3.46 | 169.58 | 0.3239 | |
| 0 | 1 | 0 | 0 | -13.00 | 39.06 | -3.75 | 167.40 | 0.2936 | |
| 0 | 1 | 0 | 0 | -15.24 | 38.96 | -3.85 | 168.64 | 0.3304 | |
| 0 | 4 | 0 | 2 | -16.18 | 34.68 | -8.13 | 158.08 | 0.3655 | |
| 0 | 7 | 0 | 4 | -15.17 | 25.26 | -17.55 | 137.60 | 0.4334 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
