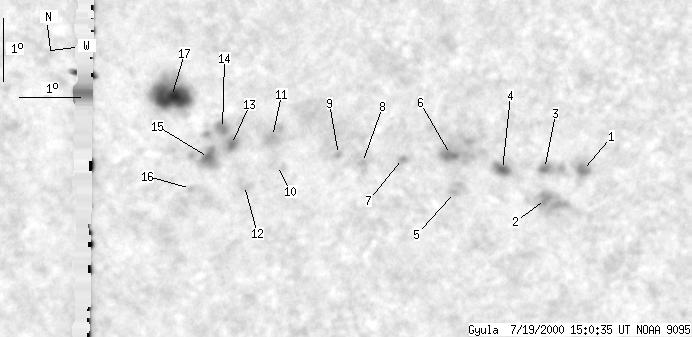

Gyula 2000-07-19 15:01:27 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 23 | 178 | 10 | 95 | 22.28 | 248.97 | 9.39 | 333.56 | 0.3412 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-07-19 15:01:27 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 9 | 0 | 5 | 21.61 | 252.69 | 13.11 | 324.10 | 0.3612 | |
| 1 | 23 | 0 | 12 | 21.15 | 252.08 | 12.50 | 324.55 | 0.3495 | |
| 1 | 5 | 1 | 3 | 21.75 | 252.03 | 12.45 | 325.69 | 0.3568 | |
| 2 | 14 | 1 | 7 | 21.79 | 251.36 | 11.78 | 327.19 | 0.3512 | |
| 0 | 11 | 0 | 6 | 21.48 | 250.49 | 10.90 | 328.63 | 0.3395 | |
| 1 | 17 | 0 | 9 | 22.10 | 250.53 | 10.95 | 329.52 | 0.3484 | |
| 0 | 2 | 0 | 1 | 22.11 | 249.72 | 10.14 | 331.38 | 0.3419 | |
| 1 | 10 | 0 | 5 | 22.14 | 249.06 | 9.48 | 332.98 | 0.3373 | |
| 1 | 10 | 0 | 5 | 22.29 | 248.71 | 9.12 | 334.06 | 0.3368 | |
| 0 | 3 | 0 | 2 | 22.20 | 247.64 | 8.06 | 336.59 | 0.3283 | |
| 0 | 5 | 0 | 3 | 22.67 | 247.62 | 8.04 | 337.23 | 0.3351 | |
| 0 | 3 | 0 | 2 | 21.96 | 247.06 | 7.48 | 337.81 | 0.3209 | |
| 1 | 28 | 0 | 15 | 22.61 | 246.91 | 7.33 | 339.00 | 0.3298 | |
| 1 | -13 | 1 | -13 | 22.90 | 246.78 | 7.20 | 339.65 | 0.3335 | |
| 2 | -13 | 1 | -13 | 22.42 | 246.50 | 6.92 | 339.84 | 0.3245 | |
| 0 | 1 | 0 | 0 | 21.96 | 246.10 | 6.52 | 340.40 | 0.3152 | |
| 12 | 37 | 6 | 20 | 23.47 | 246.03 | 6.44 | 342.21 | 0.3383 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
